Release Info
| Catalog ID | NES-XD-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 1991 |
| Publisher | Taxan |
| Developer | Eurocom |
| Players | 1 |
| Peripherals | NES Controller |

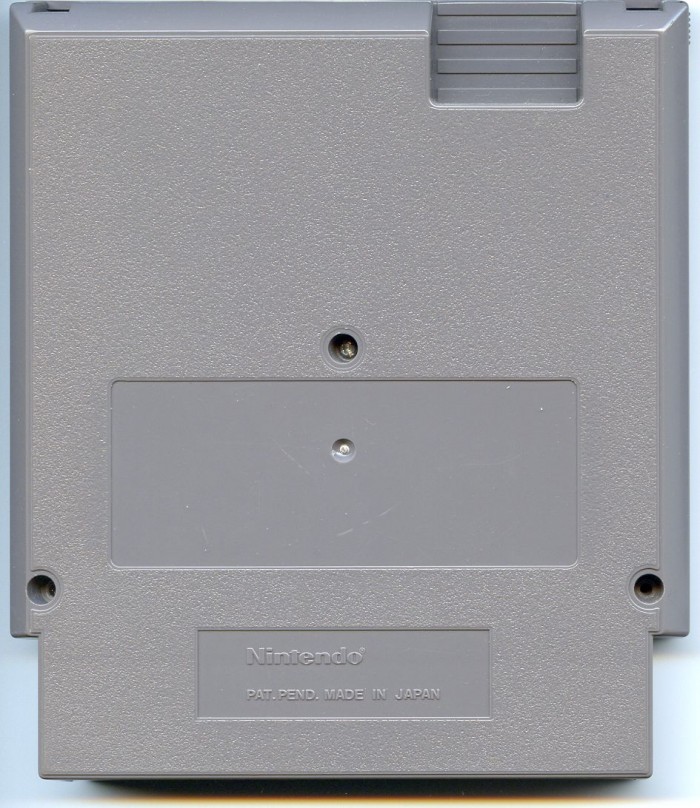

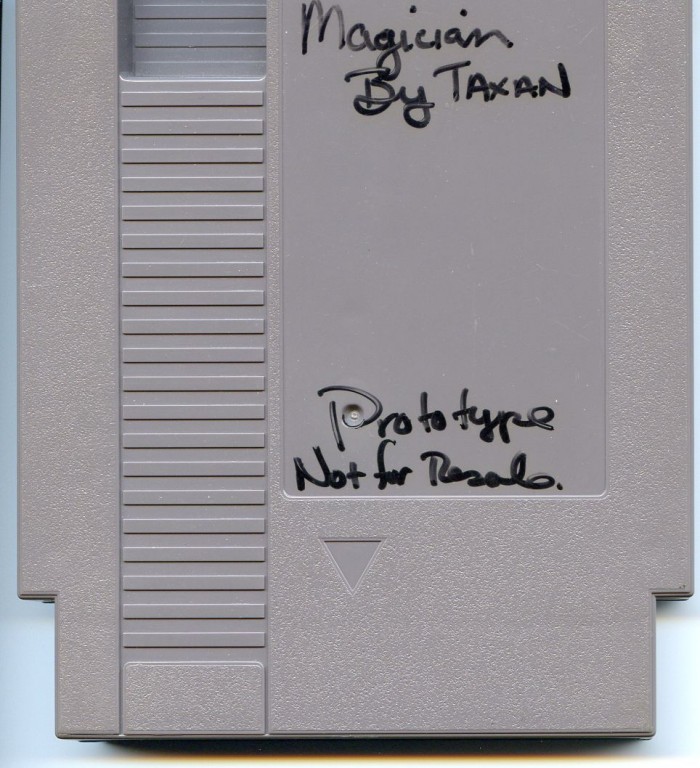

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

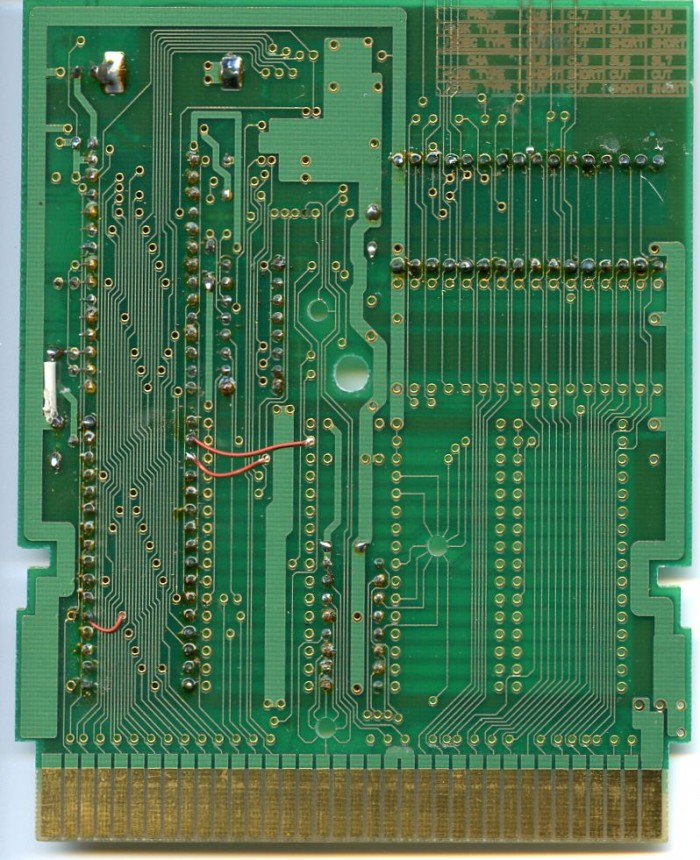

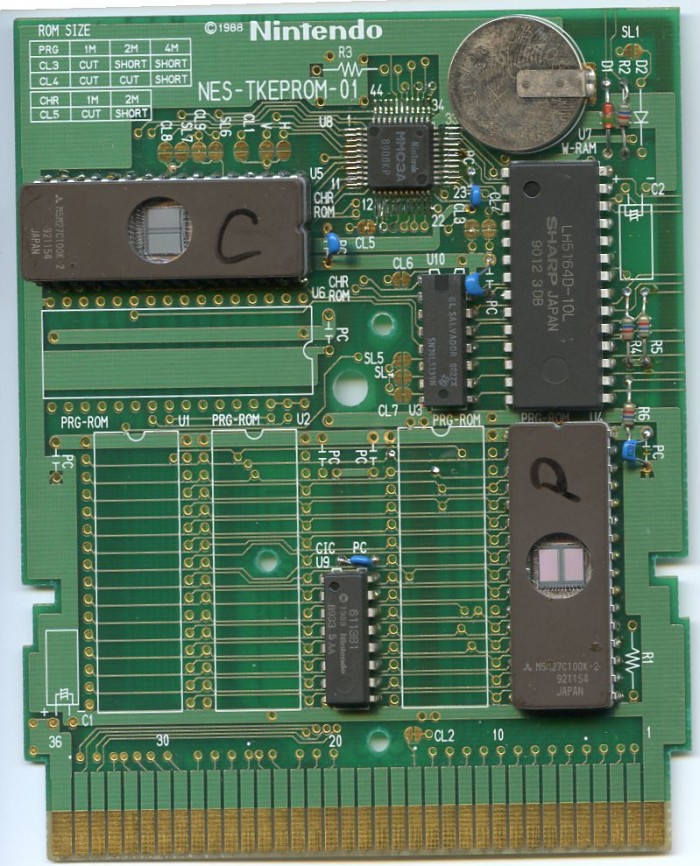

PCB Properties
| Name | NES-TKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9049 - 9049 (2) |
| Est First Run | December 1990 |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | P | 128 KB | 3829A3C2 | 1 |
| CHR0 | C | 128 KB | FA7529B0 | 1 |
| N/A | ROMs Combined | 256 KB | B7D69A6D | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U10 | Texas Instruments | SN74LS139N | 74-139 Series | DIP-16 | 9027 X | 9027 | |
| U4 PRG-ROM | Mitsubishi | M5M27C100K-2 | UV EPROM 128 KB | DIP-32 | 921 154 | 8921 | |
| U5 CHR-ROM | Mitsubishi | M5M27C100K-2 | UV EPROM 128 KB | DIP-32 | 921 154 | 8921 | |
| U7 W-RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 9012 3 DB | 9012 | |
| U8 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8908 KP | 8908 | |
| U9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8933 5 AA | 8933 |
