Release Info
| Catalog ID | NES-KM-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1988 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | NES Controller |

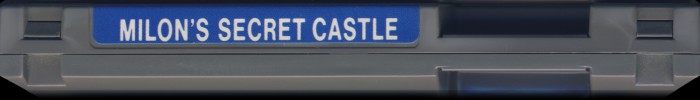

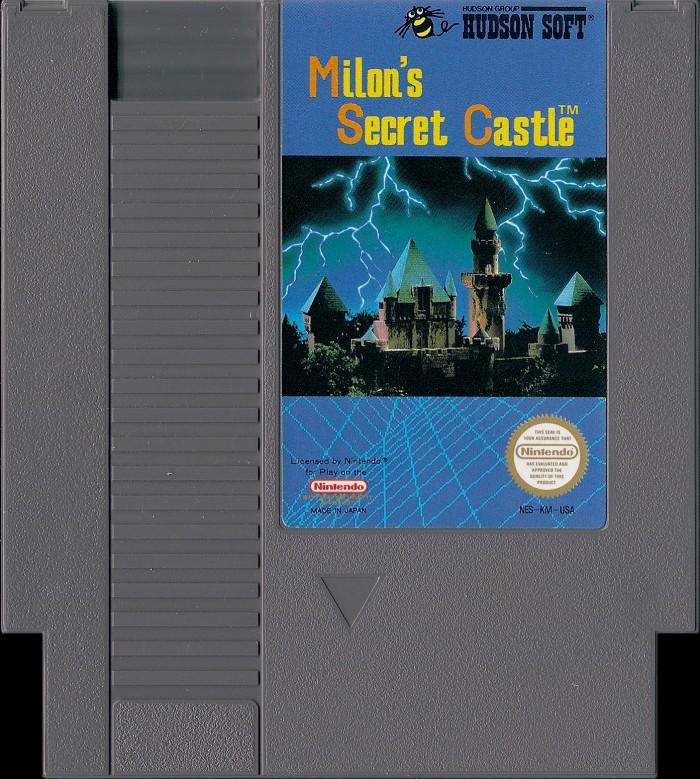

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KM-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 00 |

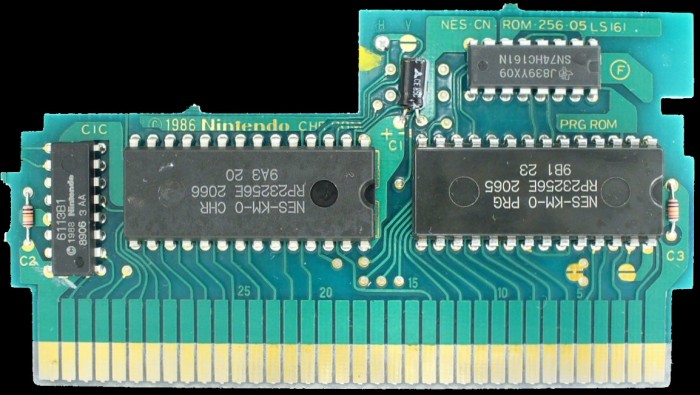

PCB Properties
| Name | NES-CN-ROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8834 - 8947 (4) |
| Est First Run | August 1988 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-KM-0 PRG | 32 KB | 01B418C5 | 5 |
| CHR0 | NES-KM-0 CHR | 32 KB | 3E3ECF3B | 5 |
| N/A | ROMs Combined | 64 KB | 586A3277 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23256E 2065 | Mask ROM 32 KB | DIP-28 | 9B1 23 | 8906 | |
| CHR ROM | Ricoh | RP23256E 2066 | Mask ROM 32 KB | DIP-28 | 9A3 20 | 8903 | |
| CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8906 3 AA | 8906 | |
| LS161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 839 J | 8839 |
