Release Info
| Catalog ID | NES-XR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1989 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

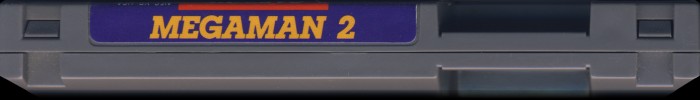

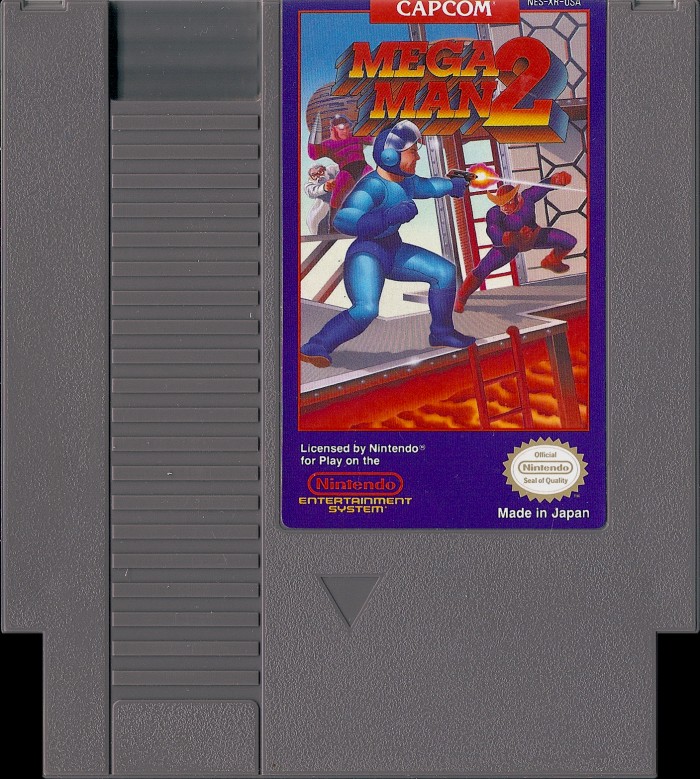

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-XR-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 00 |
PCB Properties
| Name | NES-SGROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8934 - 9012 (4) |
| Est First Run | August 1989 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-XR-0 PRG | 256 KB | 0FCFC04D | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG-ROM | Sharp | LH5322 39 | Mask ROM 256 KB | DIP-32 | 8932 D | 8932 | |
| IC2 CHR-RAM | Hitachi | HM6264ALSP-10 | SRAM 8 KB | SDIP-28 | 8922 | 8922 | 04027993 |
| IC3 MMC | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8929 3 A | 8929 | |
| IC4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8934 5 CA | 8934 |
