Release Info
| Catalog ID | NES-W3-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | GameTek |
| Developer | Rare |
| Players | 3 |
| Peripherals | NES Controller |

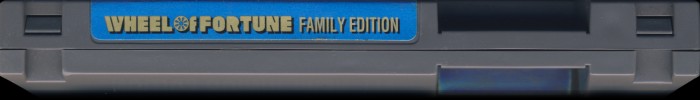

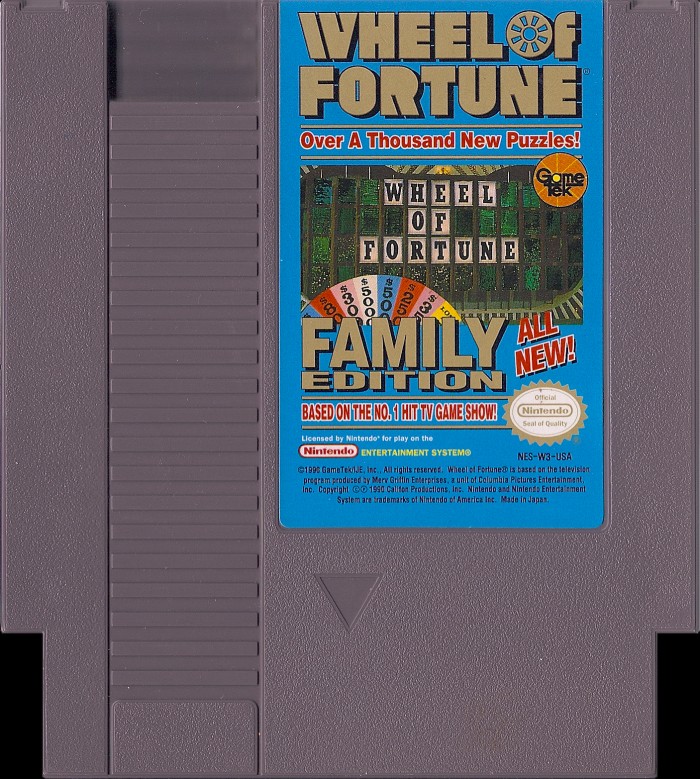

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-W3-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 00 |
PCB Properties
| Name | NES-ANROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9027 - 9028 (2) |
| Est First Run | July 1990 |
| PCB Class | NES-ANROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-W3-0 PRG | 128 KB | 009AF6BE | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 32 | Mask ROM 128 KB | DIP-28 | 9028 E | 9028 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9021 M5 | 9021 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9024 3 CA | 9024 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9018 | 9018 | |
| U5 HC02 | Texas Instruments | SN74HC02N | 74-02 Series | DIP-14 | 006 J | 9006 |
