Release Info
| Catalog ID | NES-SO-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1989 |
| Publisher | Taxan |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | NES Controller |

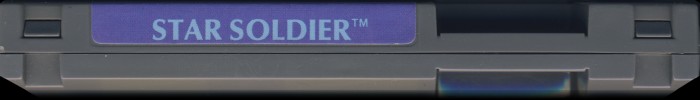

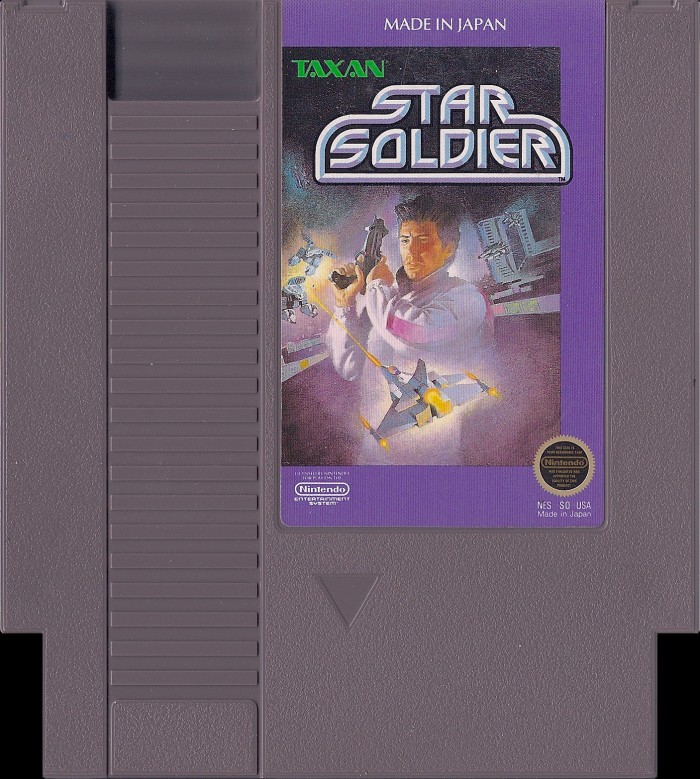

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-SO-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 08 |

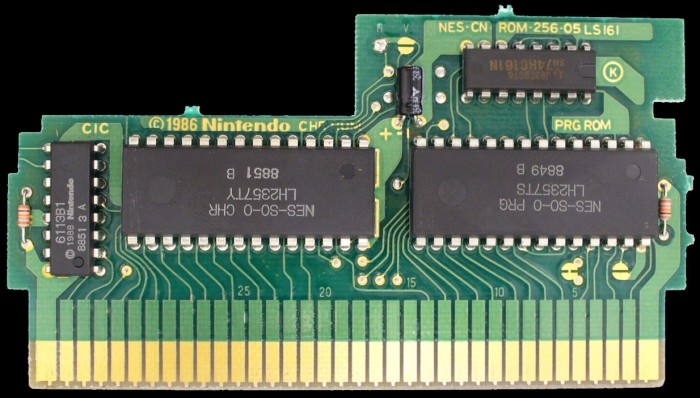

PCB Properties
| Name | NES-CN-ROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8851 - 8851 (2) |
| Est First Run | December 1988 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-SO-0 PRG | 32 KB | 766727B2 | 2 |
| CHR0 | NES-SO-0 CHR | 32 KB | F35C2AB4 | 2 |
| N/A | ROMs Combined | 64 KB | 262B5A1D | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2357 TS | Mask ROM 32 KB | DIP-28 | 8849 B | 8849 | |
| CHR ROM | Sharp | LH2357 TY | Mask ROM 32 KB | DIP-28 | 8851 B | 8851 | |
| CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8851 3 A | 8851 | |
| LS161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 836 J | 8836 |
