Release Info
| Catalog ID | NES-PQ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | 1989 |
| Publisher | Tengen |
| Developer | Namco |
| Players | 2 |
| Peripherals | NES Controller |

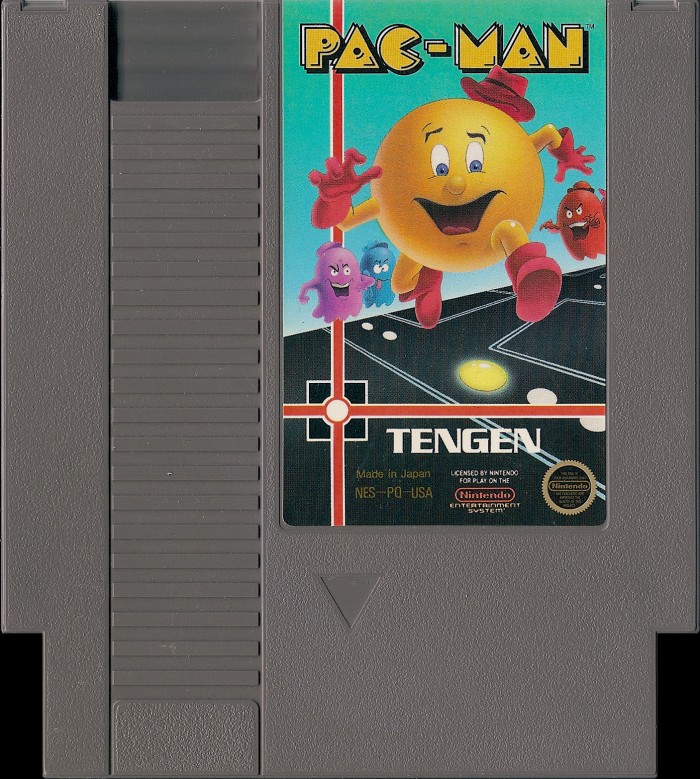

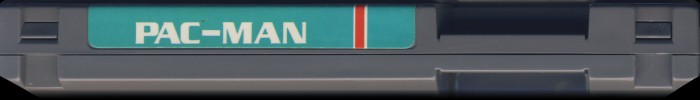

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PQ-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |

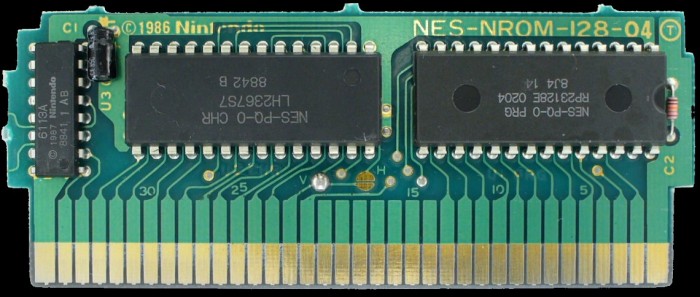

PCB Properties
| Name | NES-NROM-128-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8842 |
| Est First Run | October 1988 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-PQ-0 PRG | 16 KB | E35321BC | 2 |
| CHR0 | NES-PQ-0 CHR | 8 KB | 49ABEEE6 | 7 |
| N/A | ROMs Combined | 24 KB | A9BBF44F | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23128E 0204 | Mask ROM 16 KB | DIP-28 | 8J4 14 | 8839 | |
| U2 CHR | Sharp | LH2367 S7 | Mask ROM 8 KB | DIP-28 | 8842 B | 8842 | |
| U3 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8841 1 AB | 8841 |
