Release Info
| Catalog ID | NES-NQ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1990 |
| Publisher | Acclaim |
| Developer | Williams Entertainment |
| Players | 2 |
| Peripherals | NES Controller |

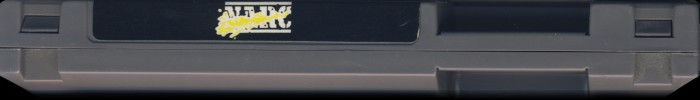

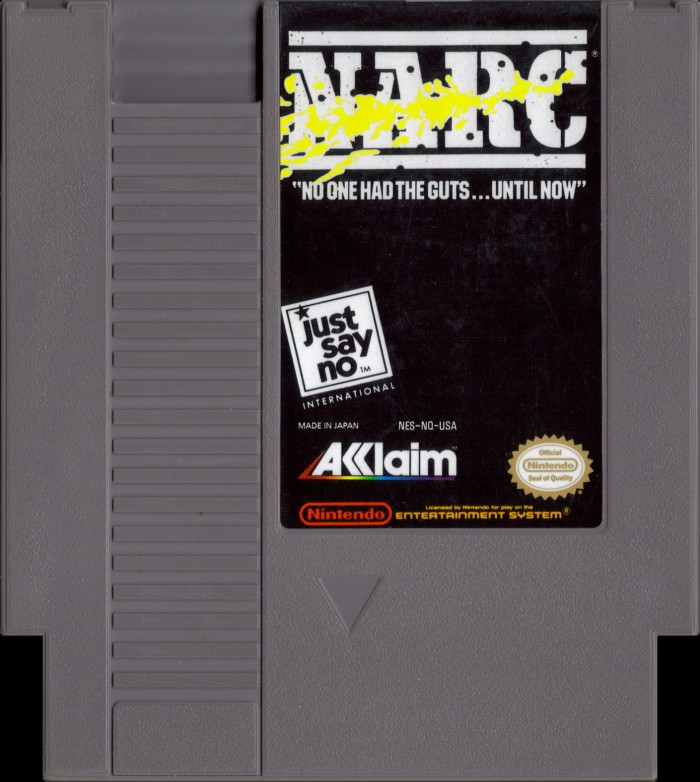

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-NQ-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 00 |
PCB Properties
| Name | NES-AMROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9028 - 9032 (4) |
| Est First Run | July 1990 |
| PCB Class | NES-AMROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-NQ-0 PRG | 128 KB | 0537322A | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S10 | Mask ROM 128 KB | DIP-28 | 9028 EX707 | 9028 | |
| U2 CHR-RAM | Sony | CXK5864APS-12LL | SRAM 8 KB | DIP-28 | 0F 07Y | 9022 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9028 5 AA | 9028 | |
| U4 HC161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 8940 HnS | 8940 | 661570T |
