Release Info
| Catalog ID | NES-H8-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1990 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 1 |
| Peripherals | NES Controller |

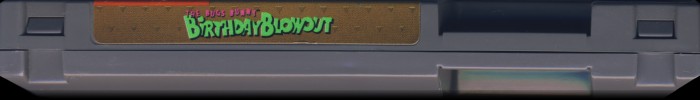

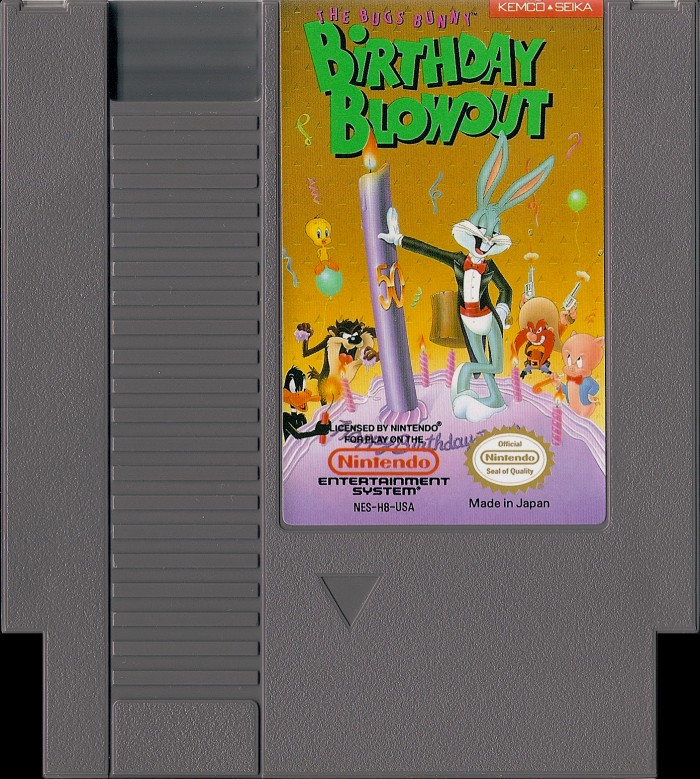

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-H8-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

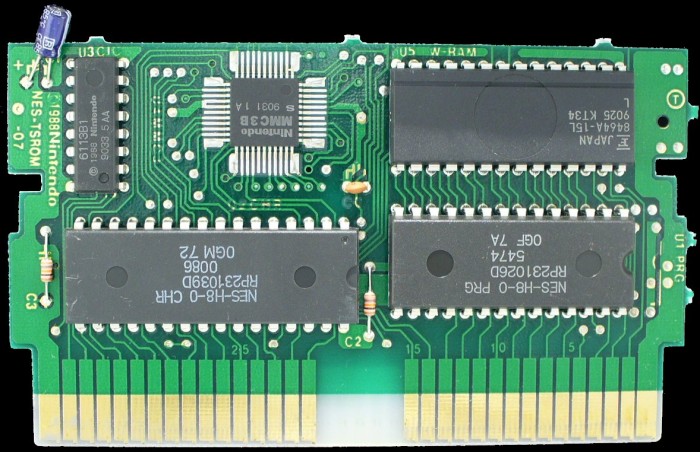

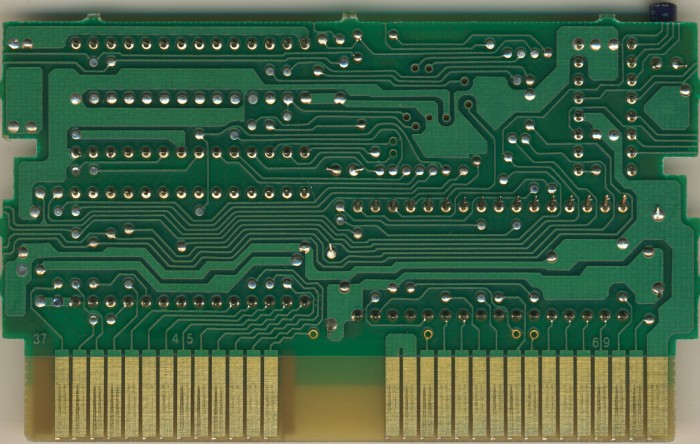

PCB Properties
| Name | NES-TSROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9032 - 9033 (2) |
| Est First Run | August 1990 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-H8-0 PRG | 128 KB | 87F699DC | 3 |
| CHR0 | NES-H8-0 CHR | 128 KB | FD39B4DB | 3 |
| N/A | ROMs Combined | 256 KB | 126EBF66 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5474 | Mask ROM 128 KB | DIP-28 | 0GF 7A | 9027 | |
| U2 CHR | Ricoh | RP231039D 0086 | Mask ROM 128 KB | DIP-32 | 0GM 72 | 9028 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9033 5 AA | 9033 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9031 1 A | 9031 | |
| U5 W-RAM | Fujitsu | 8464A-15L | SRAM 8 KB | DIP-28 | 9025 KT34 | 9025 | L |
