Release Info
| Catalog ID | NES-6C-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1994 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-6C-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

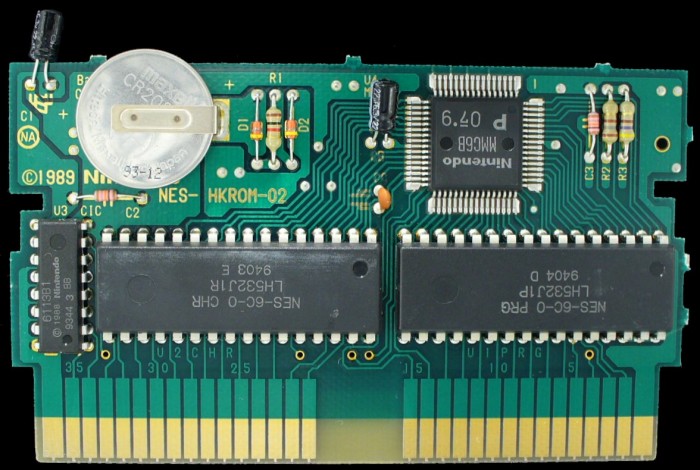

PCB Properties
| Name | NES-HKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9404 |
| Est First Run | January 1994 |
| PCB Class | NES-HKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC6B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-6C-0 PRG | 256 KB | 80FB117E | 2 |
| CHR0 | NES-6C-0 CHR | 256 KB | 0CA74E1A | 2 |
| N/A | ROMs Combined | 512 KB | D054FFB0 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 1P | Mask ROM 256 KB | DIP-32 | 9404 D | 9404 | |
| U2 CHR | Sharp | LH532J 1R | Mask ROM 256 KB | DIP-32 | 9403 E | 9403 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9344 3 BB | 9344 | |
| U4 MMC6 | Panasonic | MMC6B | Nintendo MMC6 | TQFP-64 | 0 | 9028 |
