Release Info
| Catalog ID | NES-OC-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

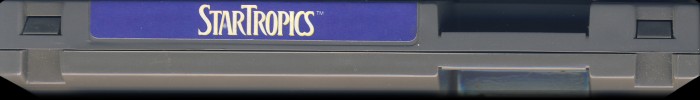

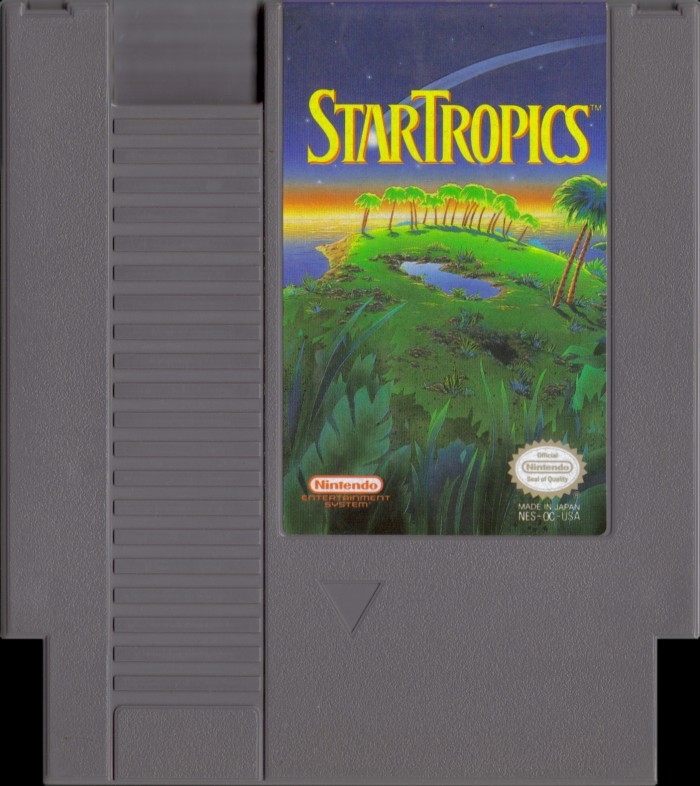

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-OC-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |
PCB Properties
| Name | NES-HKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9015 - 9021 (2) |
| Est First Run | April 1990 |
| PCB Class | NES-HKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC6B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-OC-0 PRG | 256 KB | BEB88304 | 2 |
| CHR0 | NES-OC-0 CHR | 256 KB | 42236F71 | 6 |
| N/A | ROMs Combined | 512 KB | 889129CB | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T54 | Mask ROM 256 KB | DIP-32 | 9014 PY706 | 9014 | |
| U2 CHR | NEC | UPD23C2013C T55 | Mask ROM 256 KB | DIP-32 | 9015 PY725 | 9015 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9013 5 CA | 9013 | |
| U4 MMC6 | Panasonic | MMC6B | Nintendo MMC6 | TQFP-64 | 0 | 9009 |
