Release Info
| Catalog ID | NES-G6-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1994 |
| Publisher | Nintendo |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

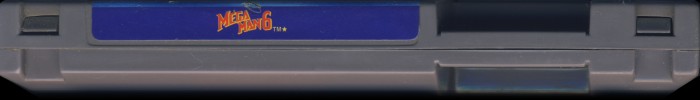

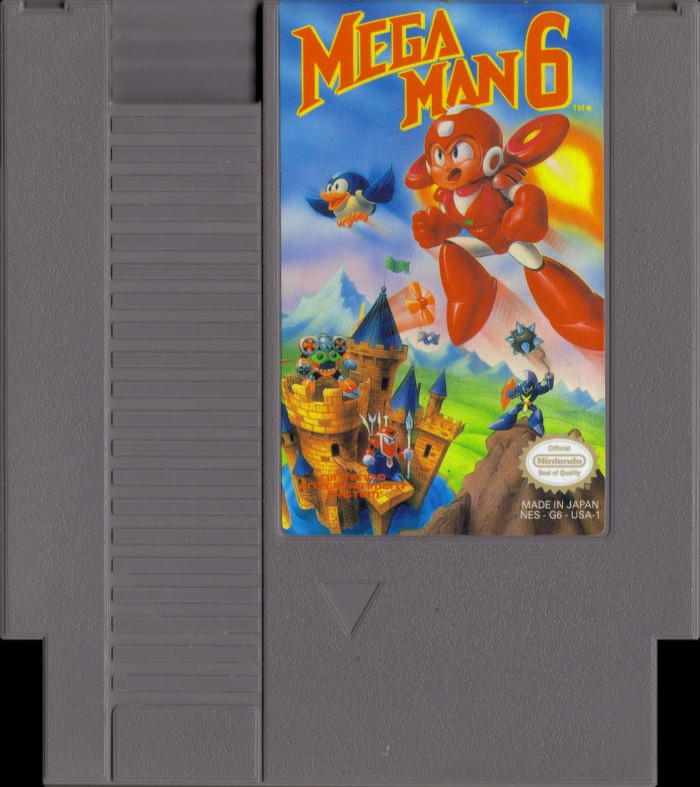

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-G6-USA-1 |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-TGROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9402 - 9404 (3) |
| Est First Run | January 1994 |
| PCB Class | NES-TGROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-G6-0 PRG | 512 KB | 988798A8 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH534B 1U | Mask ROM 512 KB | DIP-32 | 9404 E | 9404 | |
| U2 CHR | Sony | CXK5864BPX-12LL | SRAM 8 KB | DIP-28 | 338 B06X | 9338 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9344 1 BB | 9344 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9312 EP024 | 9312 |
