Release Info
| Catalog ID | NES-8H-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1991 |
| Publisher | Tradewest |
| Developer | Rare |
| Players | 4 |
| Peripherals | NES Controller |

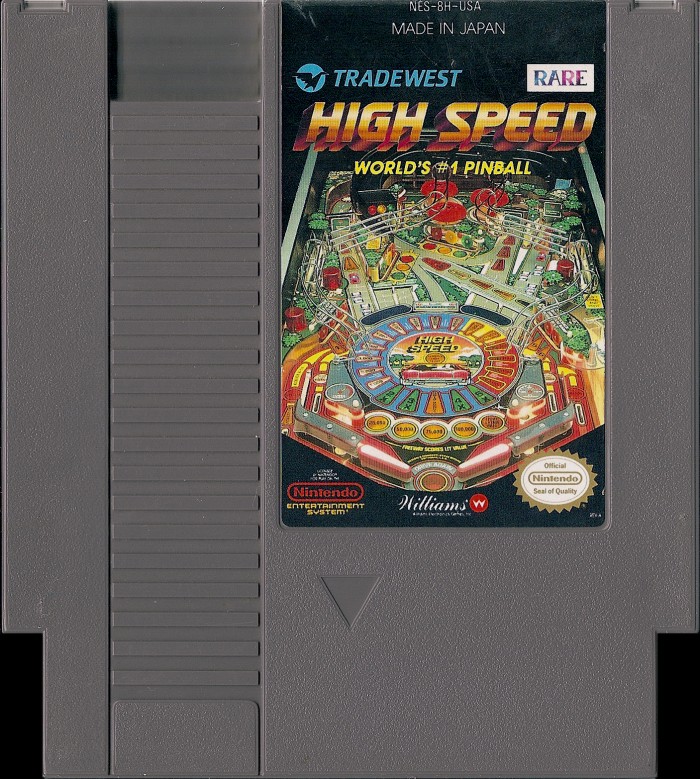

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-8H-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 21 |

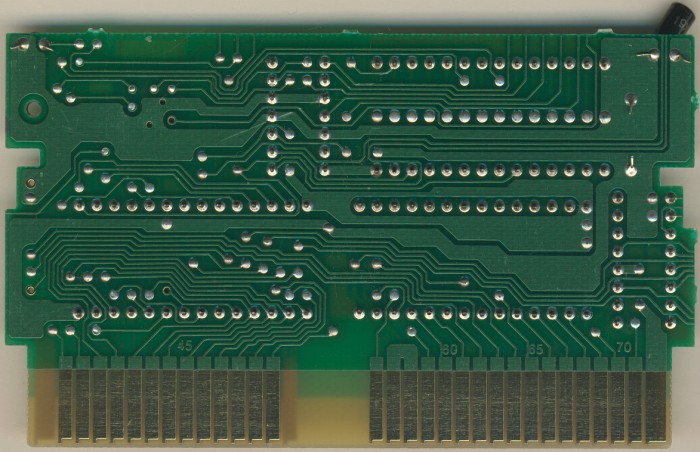

PCB Properties
| Name | NES-TQROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9126 |
| Est First Run | June 1991 |
| PCB Class | NES-TQROM |
| iNES Mapper | 119 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-8H-0 PRG | 128 KB | 1255036F | 1 |
| CHR0 | NES-8H-0 CHR | 64 KB | 028F3D82 | 3 |
| N/A | ROMs Combined | 192 KB | 383CABBF | 1 |

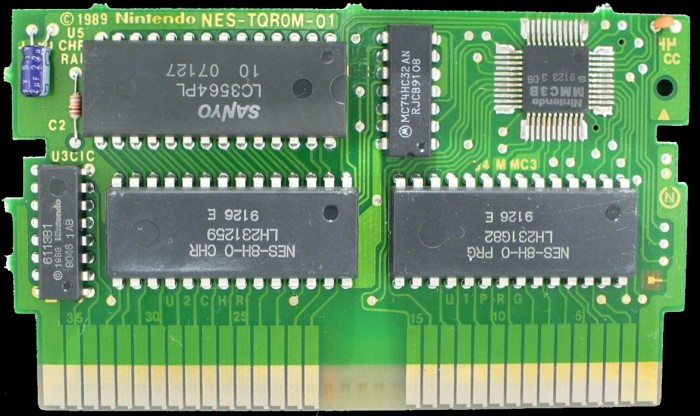

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 82 | Mask ROM 128 KB | DIP-28 | 9126 E | 9126 | |
| U2 CHR | Sharp | LH2312 59 | Mask ROM 64 KB | DIP-28 | 9126 E | 9126 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9046 1 AB | 9046 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9123 3 DB | 9123 | |
| U5 CHR RAM | Sanyo | LC3564PL-10 | SRAM 8 KB | DIP-28 | 07 127 | 9026 | |
| U6 HC32 | Motorola | MC74HC32AN | 74-32 Series | DIP-14 | 9108 RJCB | 9108 |
