Release Info
| Catalog ID | NES-IO-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | April 1990 |
| Publisher | Nintendo |
| Developer | Rare |
| Players | 4 |
| Peripherals | NES Controller |
Cart Properties

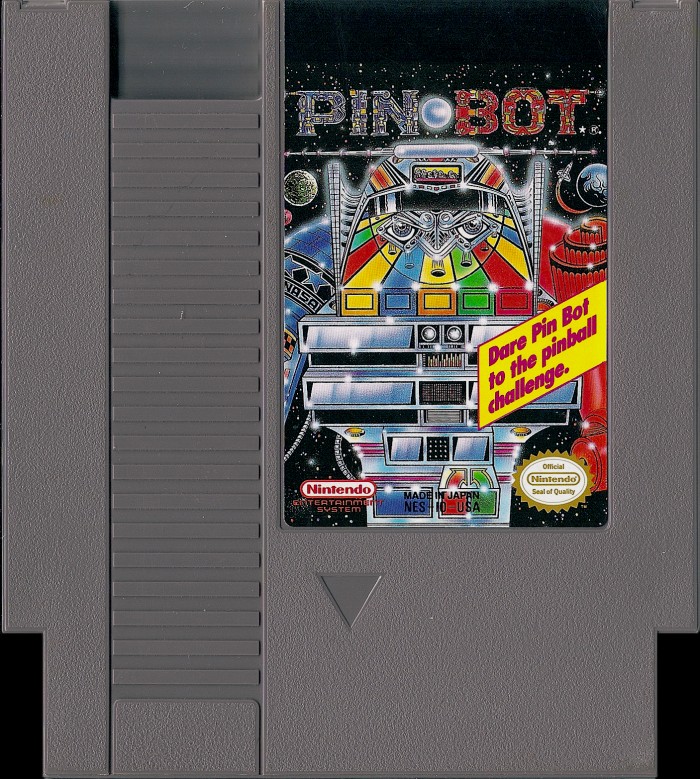

| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |

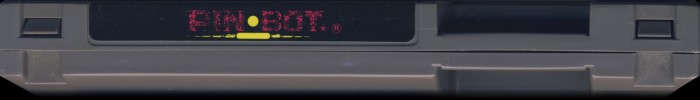

| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-IO-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 21 |

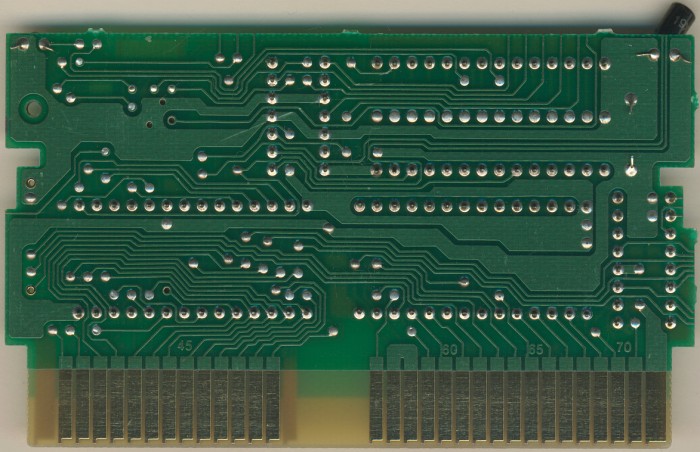

PCB Properties
| Name | NES-TQROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9004 |
| Est First Run | January 1990 |
| PCB Class | NES-TQROM |
| iNES Mapper | 119 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-IO-0 PRG | 128 KB | 9F75B83B | 2 |
| CHR0 | NES-IO-0 CHR | 64 KB | 9089FC24 | 5 |
| N/A | ROMs Combined | 192 KB | D19ADDEB | 2 |

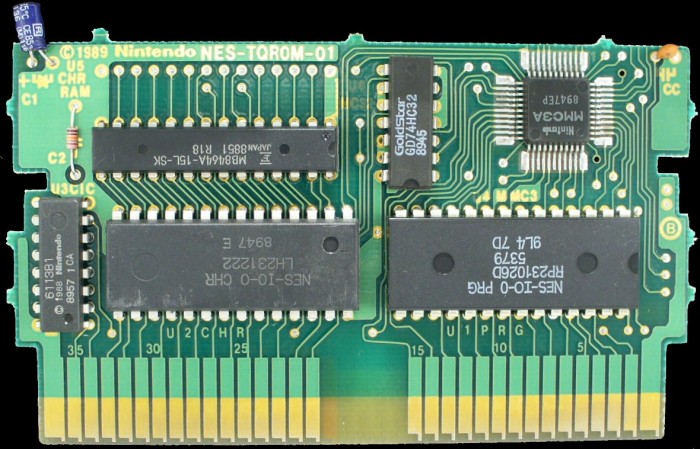

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5379 | Mask ROM 128 KB | DIP-28 | 9L4 7D | 8948 | |
| U2 CHR | Sharp | LH2312 22 | Mask ROM 64 KB | DIP-28 | 8947 E | 8947 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8957 1 CA | 9004 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8947 EP | 8947 | |
| U5 CHR RAM | Fujitsu | MB8464A-15L-SK | SRAM 8 KB | SDIP-28 | 8851 R18 | 8851 | |
| U6 HC32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | 8945 | 8945 |
