Release Info
| Catalog ID |
PNF-PF (R55V5903) |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
September 5, 1986 |
| Publisher |
Pony Canyon |
| Developer |
Micronics / Khaos |
| Players |
2 |
| Peripherals |
Famicom Controller |

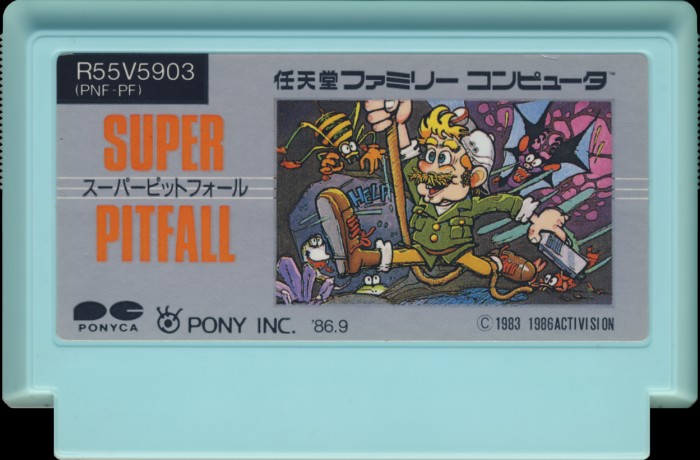

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Light Cyan |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
PNF-PF |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
11 |
PCB Properties
| Name |
HVC-UNROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8631 - 8632 (4) |
| Est First Run |
August 1986 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
PNF-PF-0 PRG |
128 KB |
1C66BAF6 |
4 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG ROM |
Sharp |
LH5310
R1
|
Mask ROM
128 KB
|
DIP-28 |
8631
D
|
8631 |
|
| CHR RAM |
Toshiba |
TC5565PL-15
|
SRAM
8 KB
|
DIP-28 |
8444
HEK
|
8444 |
|
| LS161 |
Sharp |
LR74HC161
|
74-161 Series
|
DIP-16 |
67D
7
|
8631 |
|
| LS32 |
Toshiba |
TC74HC32P
|
74-32 Series
|
DIP-14 |
8612
H
|
8612 |
|
Additional Images
PCB Images
