Release Info
| Catalog ID |
EPO-E5 |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
September 14, 1990 |
| Publisher |
Epoch |
| Developer |
Sakata SAS |
| Players |
1 |
| Peripherals |
Famicom Controller |

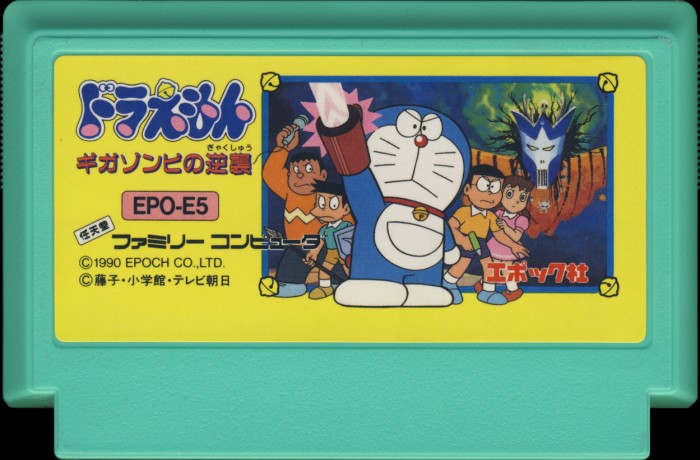

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Spring Green |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
EPO-E5 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-SNROM-09 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9031 - 9104 (2) |
| Est First Run |
August 1990 |
| PCB Class |
HVC-SNROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1B2 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
EPO-E5-0 PRG |
256 KB |
D7215873 |
2 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Sharp |
LH5322
0S
|
Mask ROM
256 KB
|
DIP-32 |
9104
D
|
9104 |
|
| U2 CHR |
Toshiba |
TC5565APL-15L
|
SRAM
8 KB
|
DIP-28 |
9031
HCK
|
9031 |
|
| U3 MMC1 |
Sharp |
MMC1B2
|
Nintendo MMC1
|
DIP-24 |
9103
5 TA
|
9103 |
|
| U4 W-RAM |
Toshiba |
TC5565APL-15L
|
SRAM
8 KB
|
DIP-28 |
9031
HCK
|
9031 |
|
