Release Info
| Catalog ID | NES-WA-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

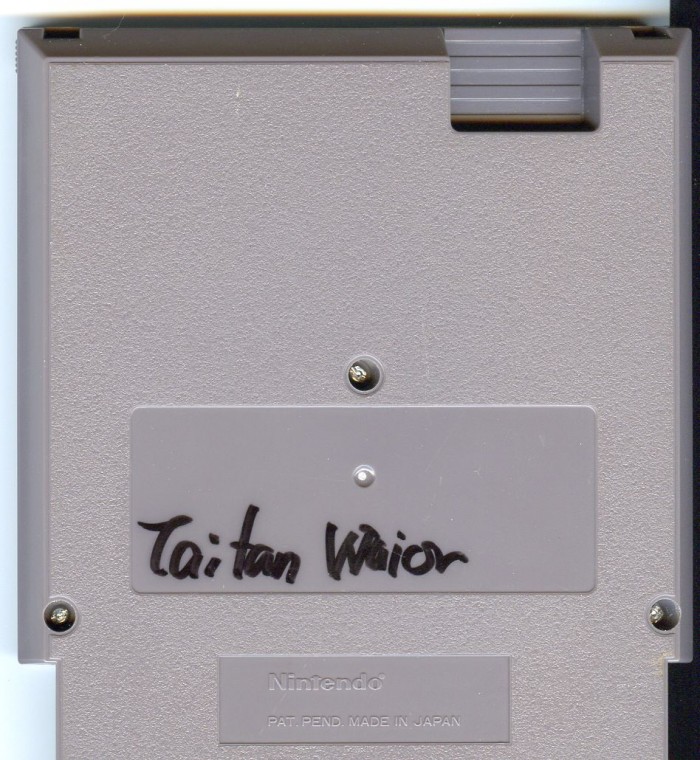

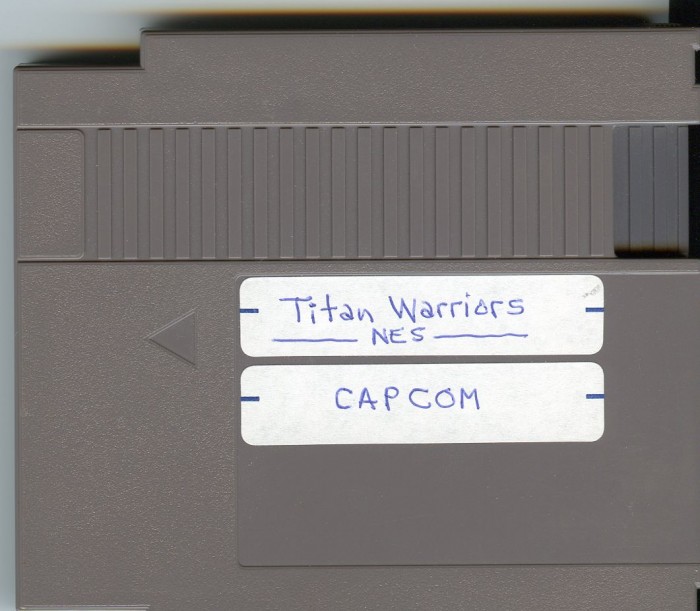

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-UNEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-UNEPROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ???? ?????? CAPCOM | 128 KB | 8366CF72 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC3 LS161 | Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 608 0E0 | 8608 | |
| IC5 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8844 1 BA | 8844 | |
| Hitachi | HN27C3010-20 | UV EPROM 128 KB | DIP-32 | 8848 | 8848 | 00002550 | |
| Sanyo | LC3664N-12 | SRAM 8 KB | DIP-28 | 8G 8 | 8826 | ||
| LS32 | Hitachi | HD74LS32P | 74-32 Series | DIP-14 | 7M3 1 | 8752 |
