Release Info
| Catalog ID | AGCI-CH |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AGCI |
| Developer | Exidy |
| Players | 2 |
| Peripherals | Zapper Light Gun |

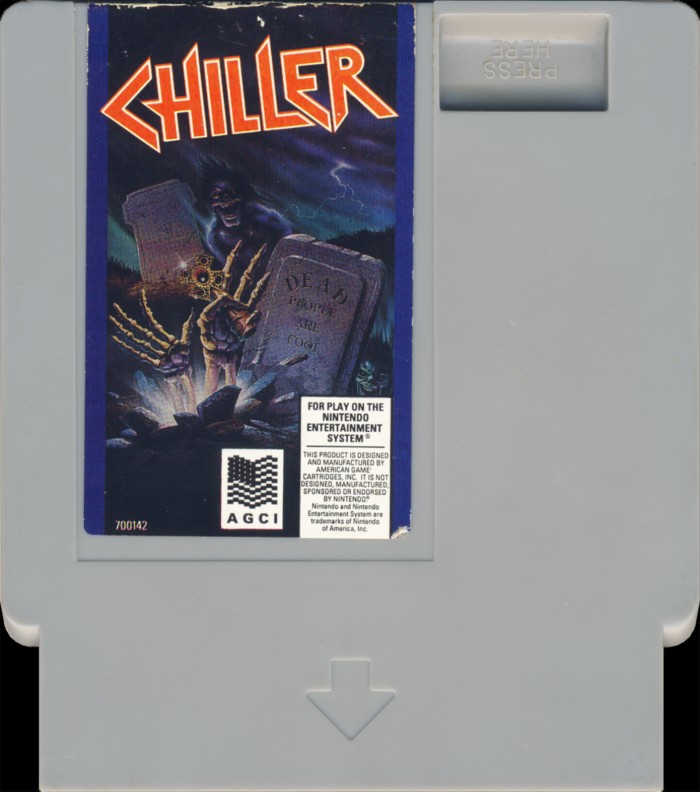

Cart Properties
| Cart Producer | AGCI |
|---|---|
| Color | Grey |
| Form Factor | Shallow Grip |
| Embossed Text | AGCI Patent Pending |
| Front Label ID | 700142 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

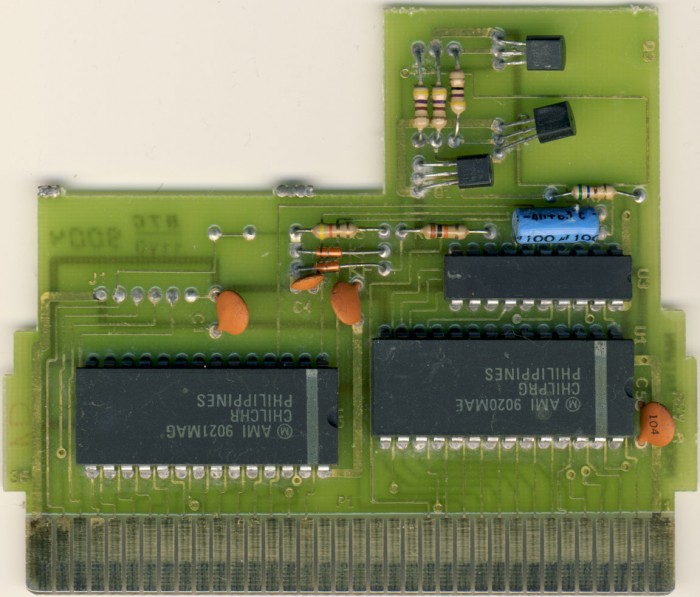

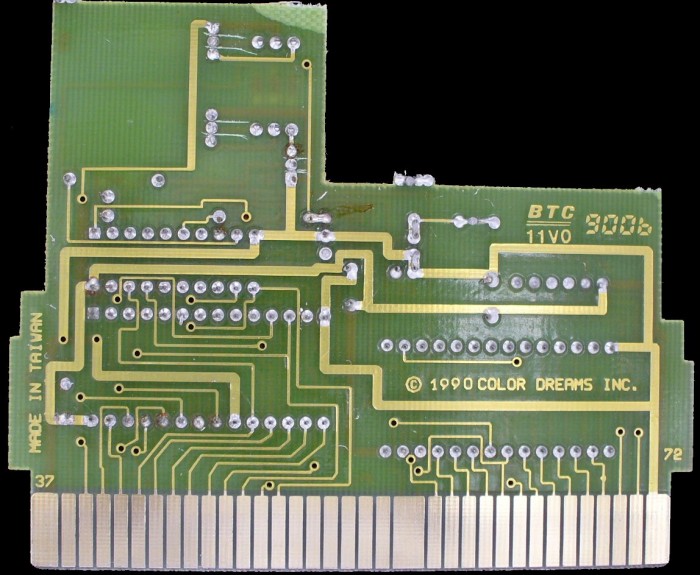

PCB Properties
| Name | UNK-COLORDREAMS-REVA |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9021 - 9021 (3) |
| Est First Run | May 1990 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CHILPRG | 32 KB | 98E3B8BB | 3 |
| CHR0 | CHILCHR | 32 KB | 8504288F | 1 |
| N/A | ROMs Combined | 64 KB | 91467F41 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | AMI | AM23256 | Mask ROM 32 KB | DIP-28 | 9020 MAE | 9020 | |
| U2 | AMI | AM23256 | Mask ROM 32 KB | DIP-28 | 9021 MAG | 9021 | |
| U3 | __Unknown | 74LS377N | 74-377 Series | DIP-20 |
