Release Info
| Catalog ID | UNL-RCMII |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | March 22, 1996 |
| Publisher | RacerMate |
| Developer | RacerMate |
| Players | 2 |
| Peripherals | RacerMate Bike |

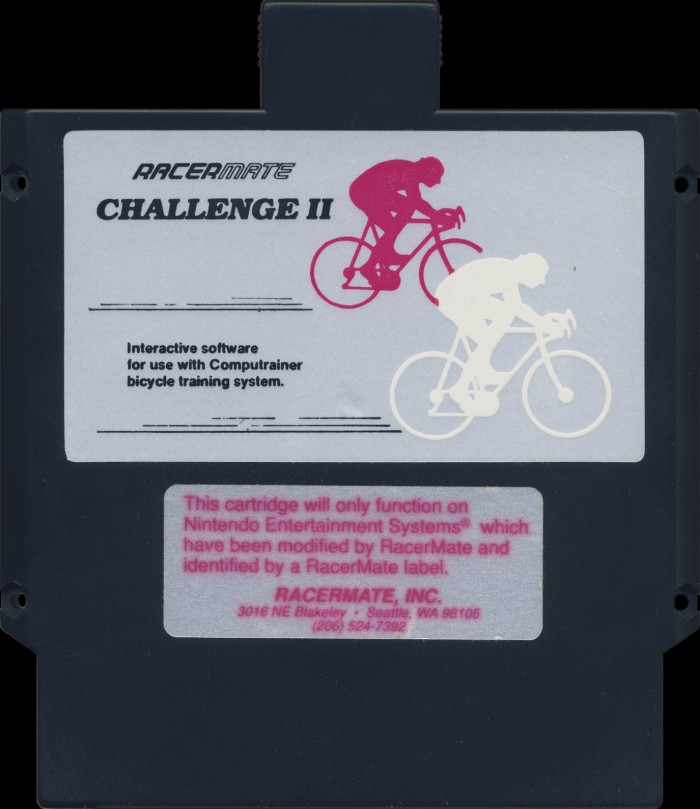

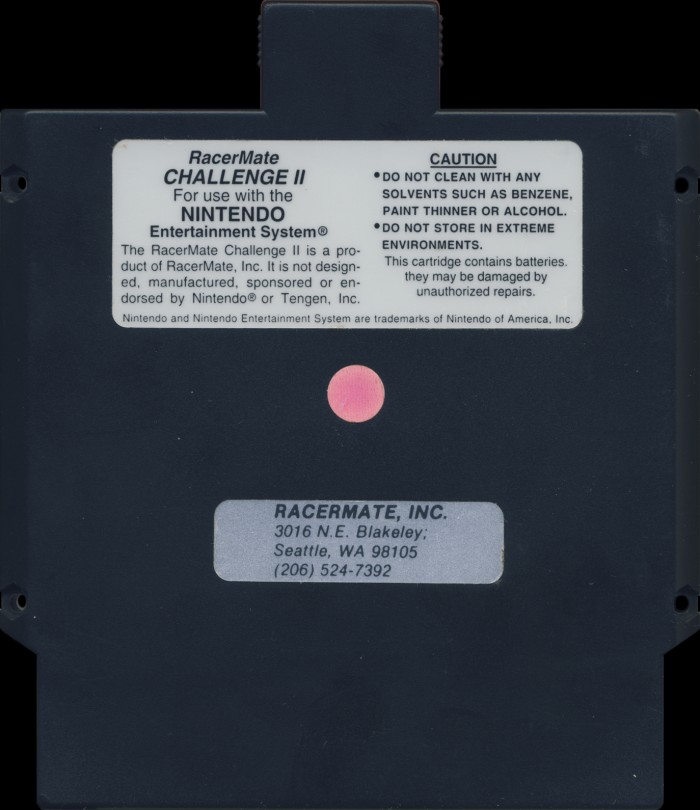

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | R981-112-00 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9016 - 9648 (3) |
| Est First Run | April 1990 |
| PCB Class | UNL-RACERMATE |
| iNES Mapper | 168 |
| Mirroring | Horizontal |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 64 KB |
| CIC Type | None |
| Hardware | 74xx00, 74xx00, 74xx174, 74xx174, 74xx32, 74xx32, 74xx4040 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | V903_128 | 64 KB | F6A9CB75 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Hyundai | HY62256ALLP-70 | SRAM 32 KB | DIP-28 | 9610 C | 9610 | |
| U10 | Phillips | 74HCT4040N | 74-4040 Series | DIP-16 | 9609 Hnn | 9609 | A26320ME |
| U2 | Hyundai | HY62256ALLP-70 | SRAM 32 KB | DIP-28 | 9610 C | 9610 | |
| U3 | Texas Instruments | TMS27C512JL-15 | UV EPROM 64 KB | DIP-28 | BLX6BZ0008 | ||
| U4 | National Semiconductor | DM74LS174N | 74-174 Series | DIP-16 | 9324 P | 9324 | AF |
| U5 | Harris | CD74HCT32E | 74-32 Series | DIP-14 | 9514 H | 9514 | |
| U6 | National Semiconductor | DM74LS00N | 74-00 Series | DIP-14 | 9252 P | 9252 | AL |
| U7 | Harris | CD74HCT32E | 74-32 Series | DIP-14 | 9514 H | 9514 | |
| U8 | National Semiconductor | DM74LS00N | 74-00 Series | DIP-14 | 9252 P | 9252 | AL |
| U9 | Phillips | 74HCT174N | 74-174 Series | DIP-16 | 9648 Hnn | 9648 | A75120PS |
