Release Info
| Catalog ID | SUN-MAD-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 18, 1986 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | Famicom Controller |

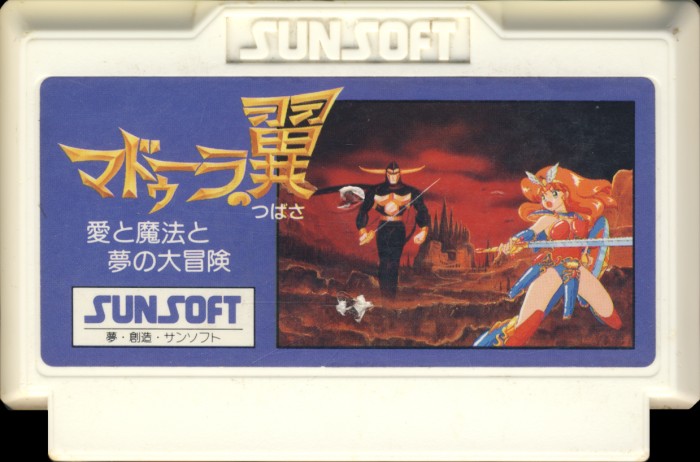

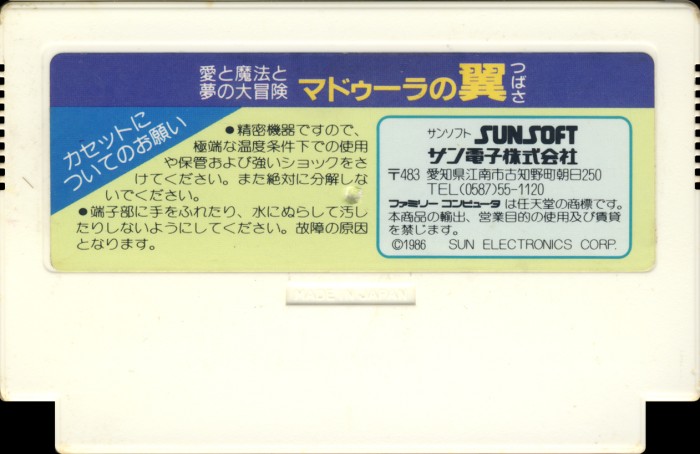

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

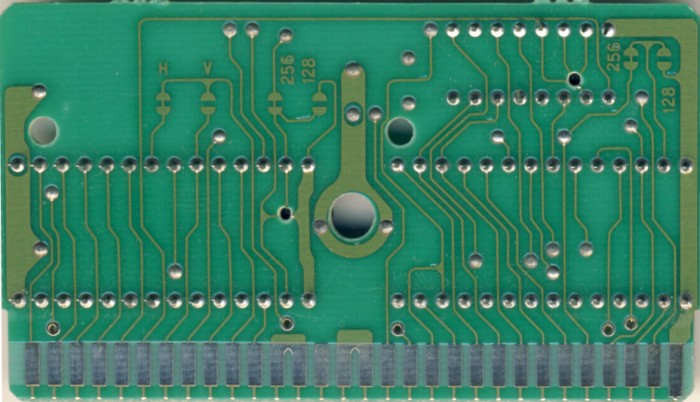

PCB Properties
| Name | SUNSOFT-K |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 8647 |
| Est First Run | November 1986 |
| PCB Class | SUNSOFT-1 |
| iNES Mapper | 184 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | CEBE3E09 | 1 |
| CHR0 | Not Present | 32 KB | 6F3A635A | 1 |
| N/A | ROMs Combined | 64 KB | 3A8F81B0 | 1 |

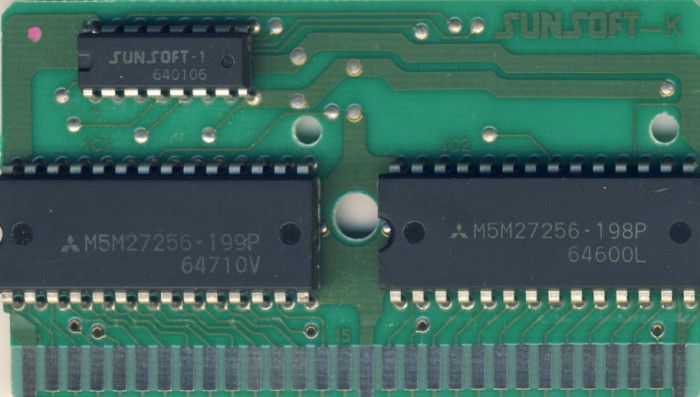

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Mitsubishi | M5M27256 199P | PROM 32 KB | DIP-28 | 647 10V | 8647 | |
| IC2 | Mitsubishi | M5M27256 198P | PROM 32 KB | DIP-28 | 646 00L | 8646 | |
| IC3 | Mitsubishi | SUNSOFT-1 | Sunsoft-1 | DIP-16 | 640 106 | 8640 |
