Release Info
| Catalog ID | NES-MW-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

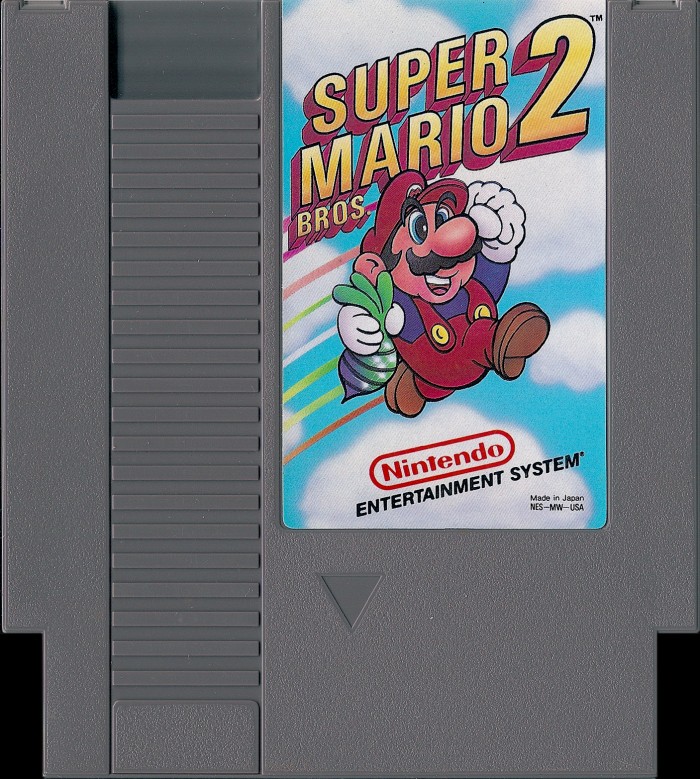

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MW-USA |
| Seal of Quality | None |
| MfgString Present | Yes |
| 2-digit Code | 21 |

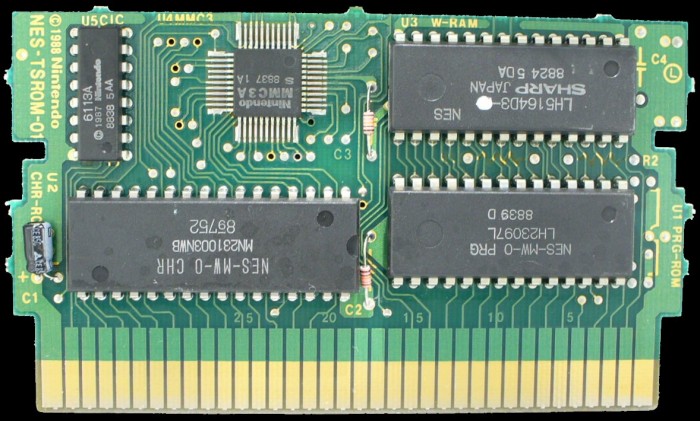

PCB Properties
| Name | NES-TSROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8839 - 9012 (6) |
| Est First Run | September 1988 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-MW-0 PRG | 128 KB | 07854B3F | 1 |
| CHR0 | NES-MW-0 CHR | 128 KB | F2BA1170 | 20 |
| N/A | ROMs Combined | 256 KB | 57AC67AF | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Sharp | LH2309 7L | Mask ROM 128 KB | DIP-28 | 8839 D | 8839 | |
| U2 CHR-ROM | Panasonic | MN231003 NWB | Mask ROM 128 KB | DIP-32 | 8 52 | 8836 | |
| U3 W-RAM | Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8824 5 DA | 8824 | |
| U4 MMC3 | Sharp | MMC3A | Nintendo MMC3 | TQFP-44 | 8837 1 A | 8837 | |
| U5 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8838 5 AA | 8838 |
