Release Info
| Catalog ID | NAM-NSK-3900-18 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 22, 1986 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

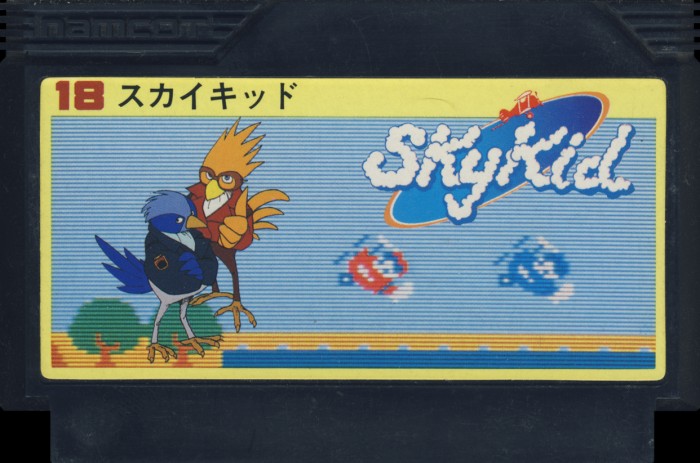

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |

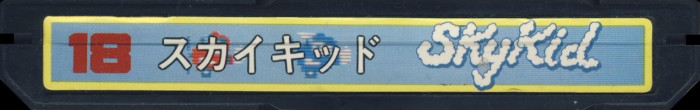

| Front Label ID | 18 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

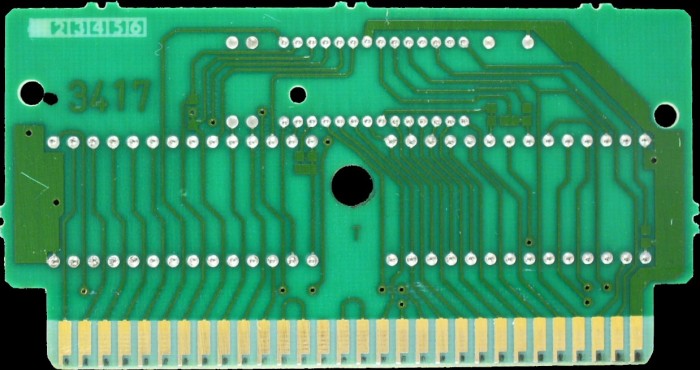

PCB Properties
| Name | 3417 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8629 - 8630 (4) |
| Est First Run | July 1986 |
| PCB Class | NAMCOT-3417 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 108 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT SK PRG | 32 KB | 90FAA618 | 4 |
| CHR0 | NAMCOT SK CHR | 32 KB | A5B1E3B2 | 4 |
| N/A | ROMs Combined | 64 KB | CA6A7BF1 | 4 |

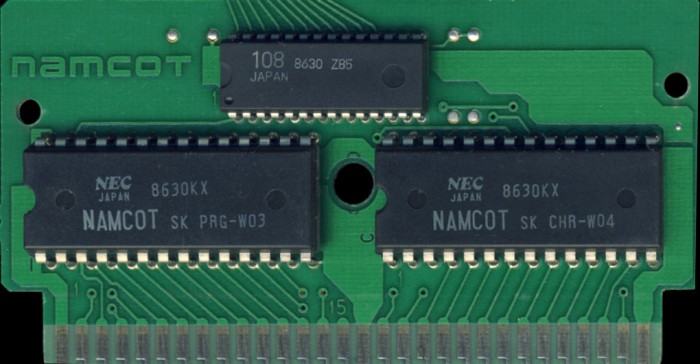

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | NEC | UPD23C256 | Mask ROM 32 KB | DIP-28 | 8630 KX | 8630 | |
| CH | NEC | UPD23C256 | Mask ROM 32 KB | DIP-28 | 8630 KX | 8630 | |
| Fujitsu | 108 | Namcot 108 | DIP-28 | 8630 Z85 | 8630 |
