Release Info
| Catalog ID | NAM-NXV-4900-03 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 8, 1984 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 03 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

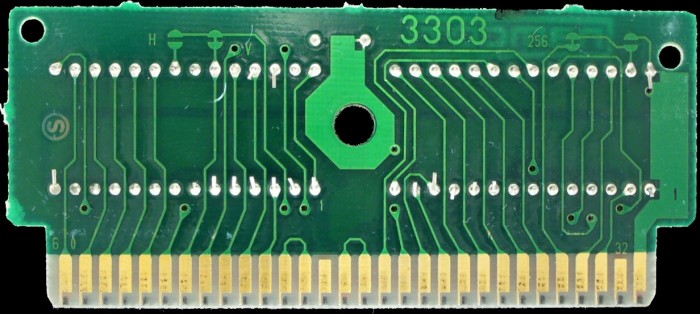

PCB Properties
| Name | 3303 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8439 - 8543 (7) |
| Est First Run | September 1984 |
| PCB Class | NAMCOT-3303 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTXVPR | 32 KB | EEB16683 | 5 |
| CHR0 | NAMCOT XV CHR | 8 KB | 668B4EE6 | 12 |
| N/A | ROMs Combined | 40 KB | B3C30BEA | 5 |

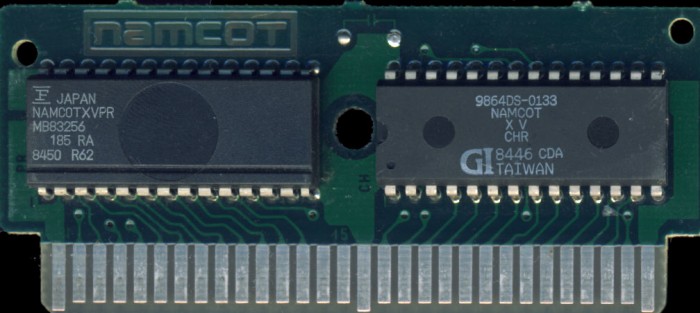

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Fujitsu | MB83256 185 RA | Mask ROM 32 KB | DIP-28 | 8450 R62 | 8450 | |
| CH | General Instrument | 9864DS 0133 | Mask ROM 8 KB | DIP-28 | 8446 CDA | 8446 |
