Release Info
| Catalog ID | NES-PA-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | 1992 |
| Publisher | Mindscape |
| Developer | Motivetime |
| Players | 1 |
| Peripherals | NES Controller |

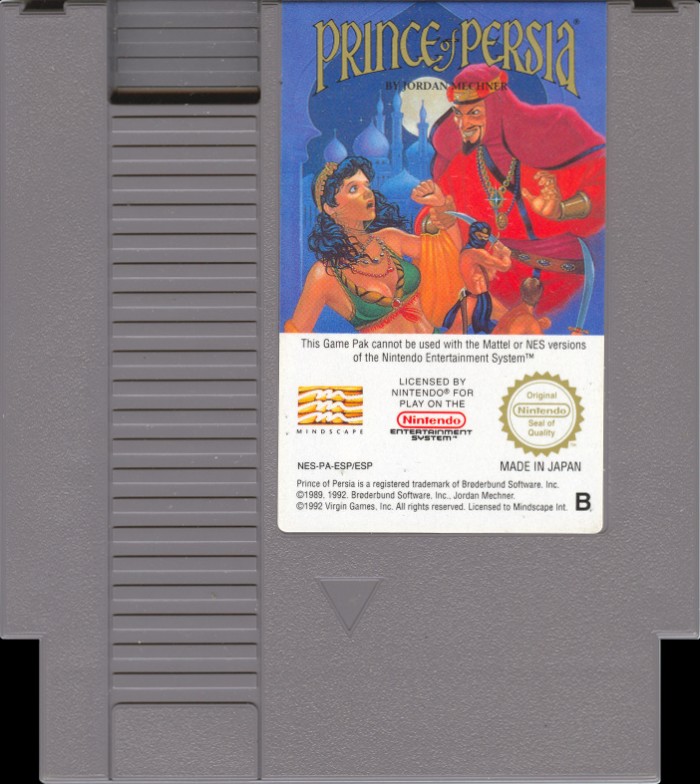

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PA-ESP/ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 01 |
PCB Properties
| Name | NES-UNROM-10 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9245 |
| Est First Run | November 1992 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ESP-PA-0 PRG | 128 KB | 4B1ED62E | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6709 | Mask ROM 128 KB | DIP-28 | 2LC 12 | 9245 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9234 EJ | 9234 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9244 A | 9244 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9041 | 9041 | |
| U5 HC32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | 9244 | 9244 |
