Release Info
| Catalog ID | NES-XR-FRG |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | December 14, 1990 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

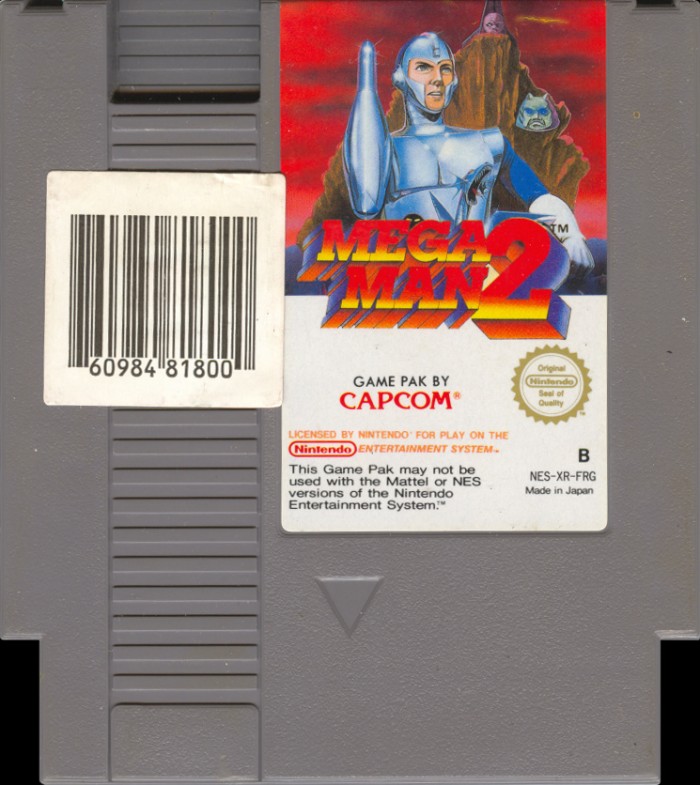

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-XR-FRG |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |
PCB Properties
| Name | NES-SGROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9128 |
| Est First Run | July 1991 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-XR-0 PRG | 256 KB | A6638CBA | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W03 | Mask ROM 256 KB | DIP-32 | 9126 EP727 | 9126 | |
| U2 CHR RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 124 N | 9124 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9119 5 AA | 9119 | |
| U4 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9128 C | 9128 |
