Release Info
| Catalog ID | CN-12 |
|---|---|
| Region | Spain (PAL) |
| Class | Unlicensed |
| Release Date | January 1, 1991 |
| Publisher | Gluk Video |
| Developer | MegaSoft |
| Players | 1 |
| Peripherals | NES Controller |

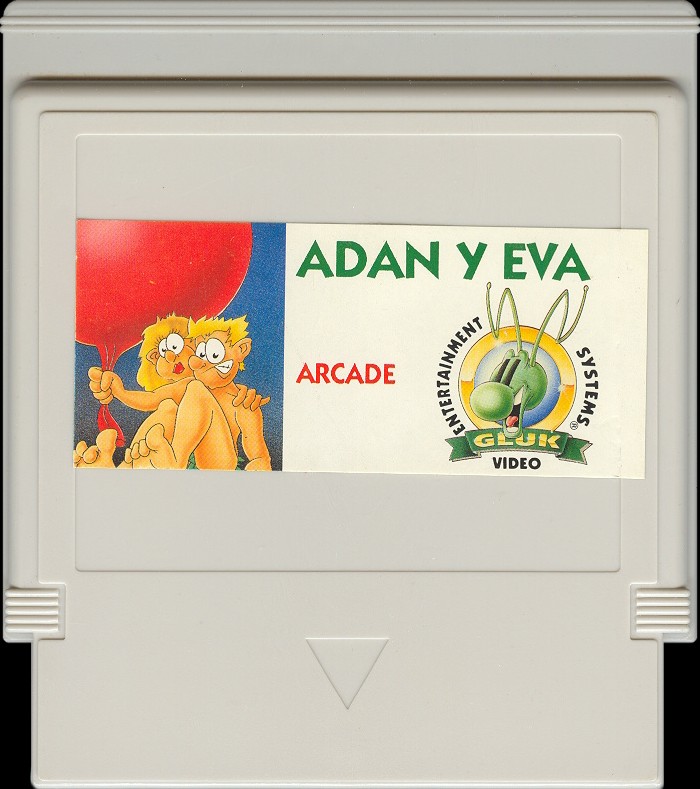

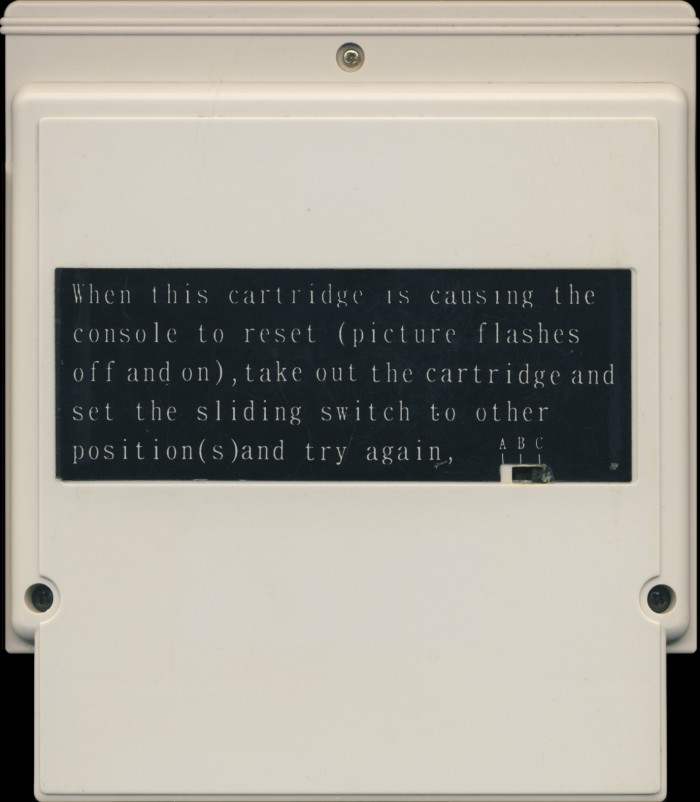

Cart Properties
| Cart Producer | |
|---|---|
| Color | Beige |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

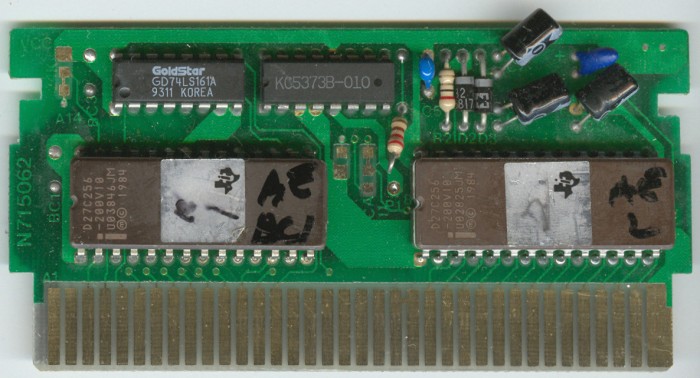

PCB Properties
| Name | N715062 |
|---|---|
| PCB Producer | NTDEC |
| Manufacturer | Not Specified |
| Mfg Range | 9311 |
| Est First Run | March 1993 |
| PCB Class | NTDEC-N715062 |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | KC5373B |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 626238F8 | 2 |
| CHR0 | Not Present | 32 KB | 0A7307D9 | 2 |
| N/A | ROMs Combined | 64 KB | 637BA508 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Intel | D27C256-200V10 | UV EPROM 32 KB | DIP-28 | 038 U | 9038 | |
| U2 | Intel | D27C256-200V10 | UV EPROM 32 KB | DIP-28 | 028 U | 9028 | |
| U3 | GoldStar | GD74LS161A | 74-161 Series | DIP-16 | 9311 | 9311 | |
| U4 | __Unknown | KC5373B-010 | NTDEC CIC | DIP-16 |
