Release Info
| Catalog ID | CN-09 |
|---|---|
| Region | Spain (PAL) |
| Class | Unlicensed |
| Release Date | January 1, 1991 |
| Publisher | Gluk Video |
| Developer | Caltron |
| Players | 1 |
| Peripherals | NES Controller |

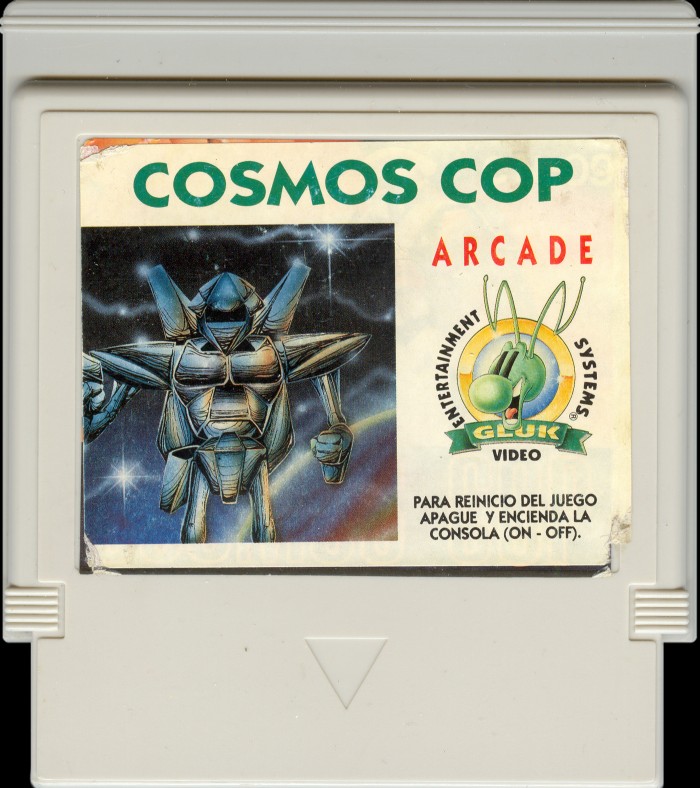

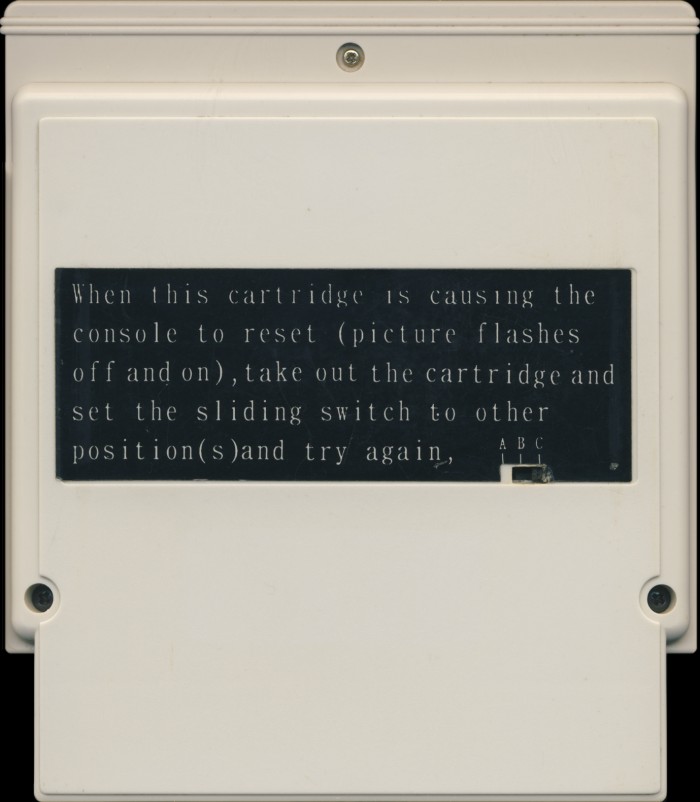

Cart Properties
| Cart Producer | |
|---|---|
| Color | Beige |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

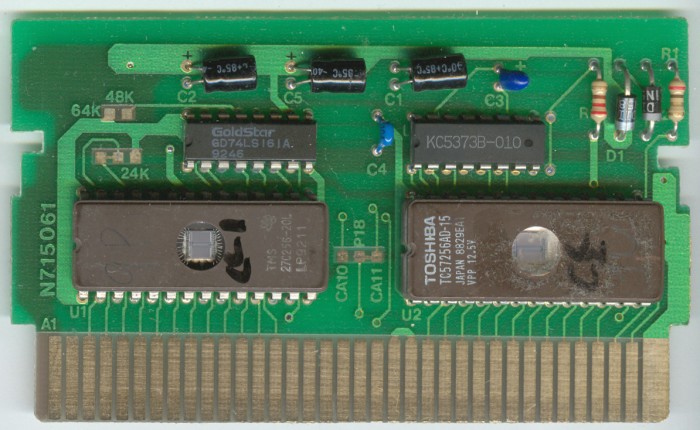

PCB Properties
| Name | N715061 |
|---|---|
| PCB Producer | NTDEC |
| Manufacturer | Not Specified |
| Mfg Range | 9246 |
| Est First Run | November 1992 |
| PCB Class | NTDEC-N715061 |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | KC5373B |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 20204CFE | 2 |
| CHR0 | Not Present | 32 KB | 486EFDB8 | 2 |
| N/A | ROMs Combined | 64 KB | E9AD2163 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Texas Instruments | TMS27C256-20L | UV EPROM 32 KB | DIP-28 | 9211 LP | 9211 | |
| U2 | Toshiba | TC57256AD-15 | UV EPROM 32 KB | DIP-28 | 8829 EAI | 8829 | |
| U3 | GoldStar | GD74LS161A | 74-161 Series | DIP-16 | 9246 | 9246 | |
| U4 | __Unknown | KC5373B-010 | NTDEC CIC | DIP-16 |
