Release Info
| Catalog ID | NES-TG-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | November 30, 1988 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |

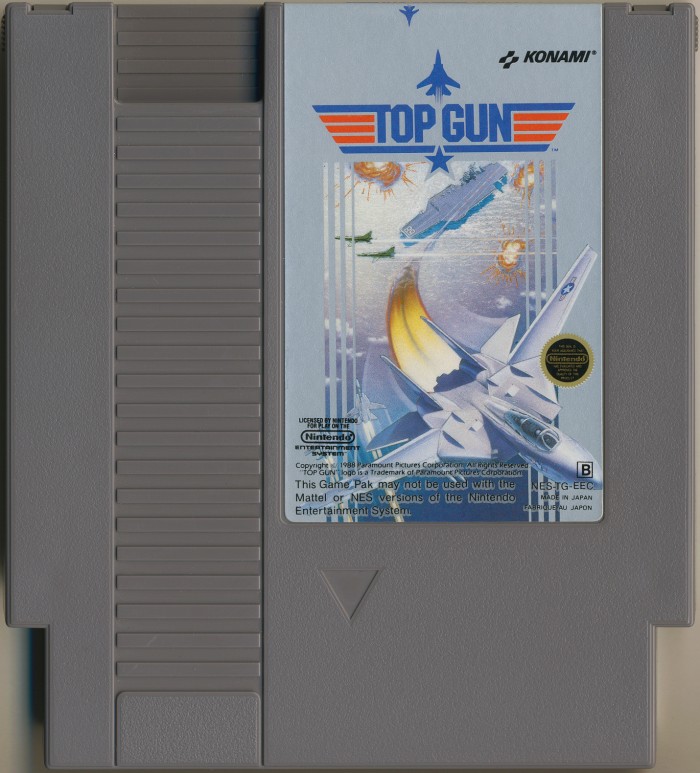

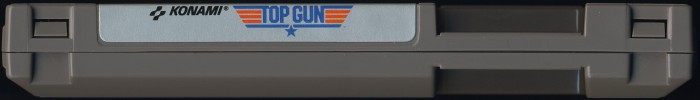

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-TG-EEC |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 08 |
PCB Properties
| Name | NES-UN-ROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8844 - 8951 (3) |
| Est First Run | November 1988 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-TG-0 PRG | 128 KB | D78BFB28 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2309 LD | Mask ROM 128 KB | DIP-28 | 8844 D | 8844 | |
| CHR RAM | Sony | CXK5864PS-15L | SRAM 8 KB | DIP-28 | 8J 21 | 8840 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8841 A | 8841 | |
| LS161N | Phillips | 74HC161N | 74-161 Series | DIP-16 | 8821 KB | 8821 | QEJ8317 |
| LS32 | Panasonic | MN74HC32 | 74-32 Series | DIP-14 | 8? | 8809 |
