Release Info
| Catalog ID | BA-PZ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 27, 1987 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

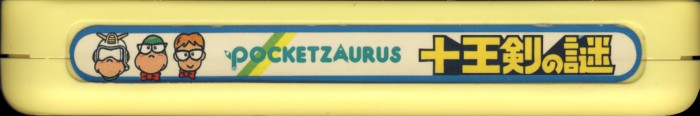

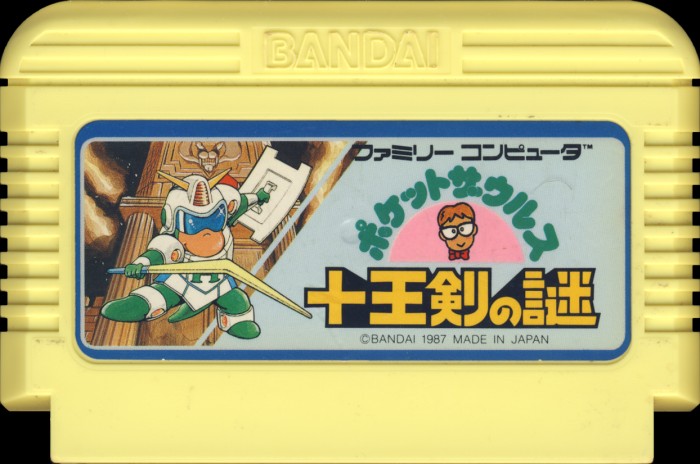

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Yellow |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

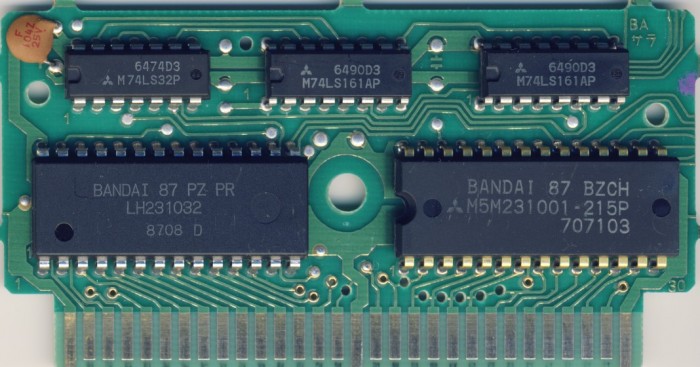

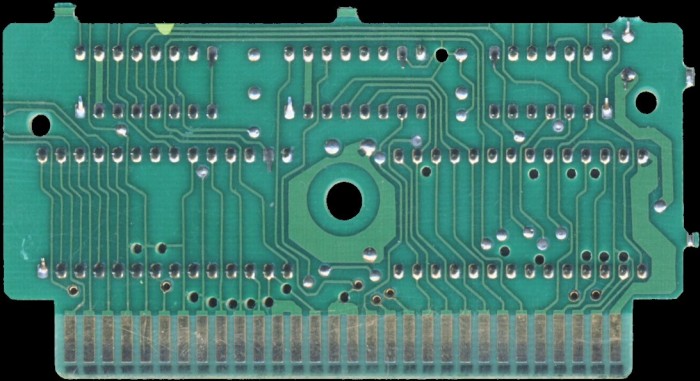

PCB Properties
| Name | BA ワラ |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8708 - 8708 (2) |
| Est First Run | February 1987 |
| PCB Class | BANDAI-74*161/161/32 |
| iNES Mapper | 152 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 87 PZ PR | 128 KB | 8CE99FE4 | 2 |
| CHR0 | BANDAI 87 BZCH | 128 KB | A59B0F6F | 2 |
| N/A | ROMs Combined | 256 KB | B1A94B82 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 32 | Mask ROM 128 KB | DIP-28 | 8708 D | 8708 | ||
| Mitsubishi | M5M231001 215P | Mask ROM 128 KB | DIP-28 | 707 103 | 8707 | ||
| Mitsubishi | M74LS32P | 74-32 Series | DIP-14 | 647 4D3 | 8647 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 649 0D3 | 8649 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 649 0D3 | 8649 |
