Release Info
| Catalog ID | BA-GE |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 17, 1986 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

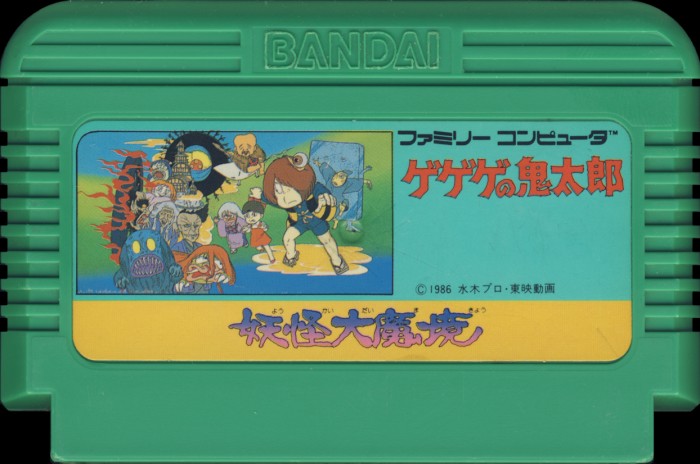

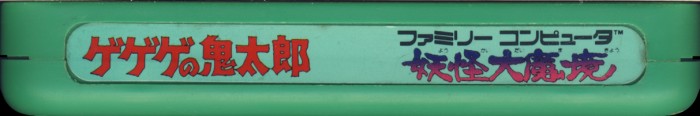

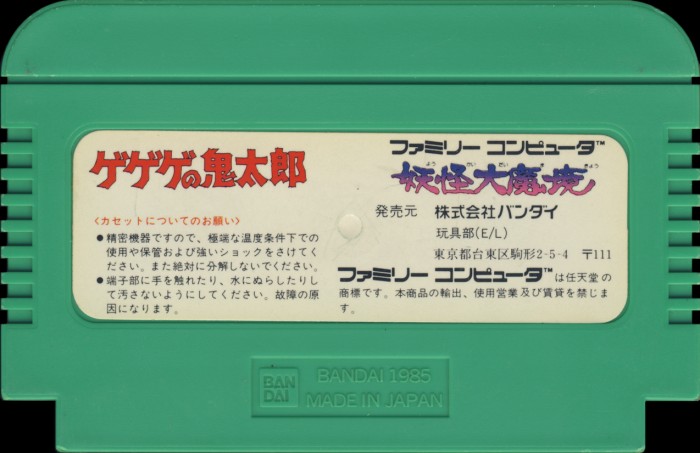

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Green |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

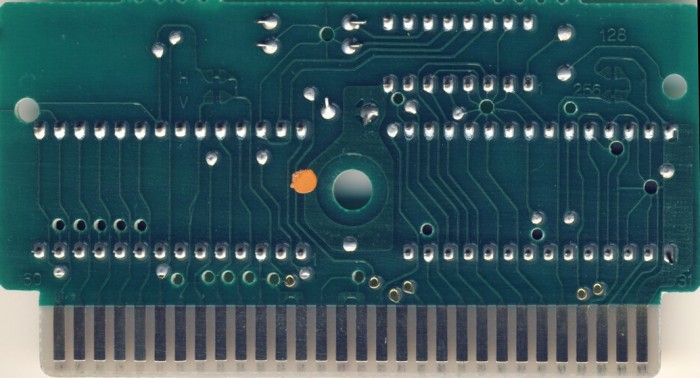

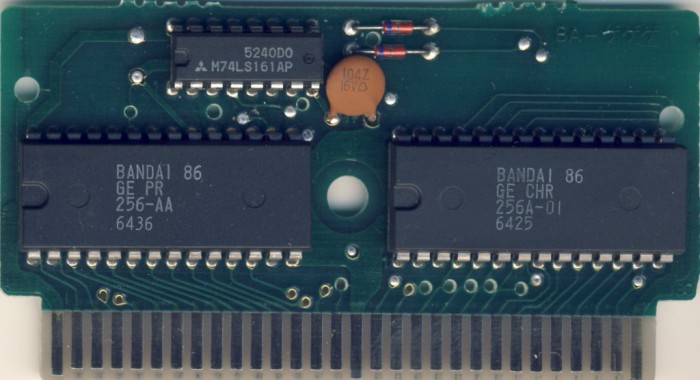

PCB Properties
| Name | BA-ゲゲゲ |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8609 - 8619 (8) |
| Est First Run | March 1986 |
| PCB Class | BANDAI-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 86 GE PR | 32 KB | E7B03B03 | 8 |
| CHR0 | BANDAI 86 GE CHR | 32 KB | 095A3F30 | 8 |
| N/A | ROMs Combined | 64 KB | 25468546 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| OKI | 256 M38 | Mask ROM 32 KB | DIP-28 | 64 36 | 8614 | ||
| OKI | 256A M38 | Mask ROM 32 KB | DIP-28 | 64 25 | 8614 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 524 0D0 | 8524 |
