Release Info
| Catalog ID | BA-DB3 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 27, 1989 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

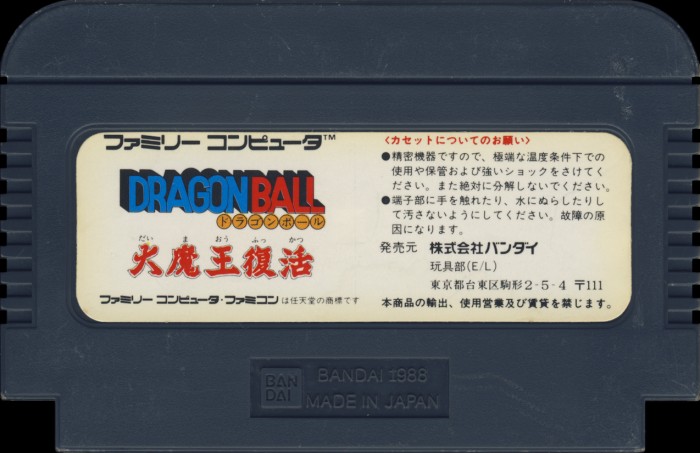

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

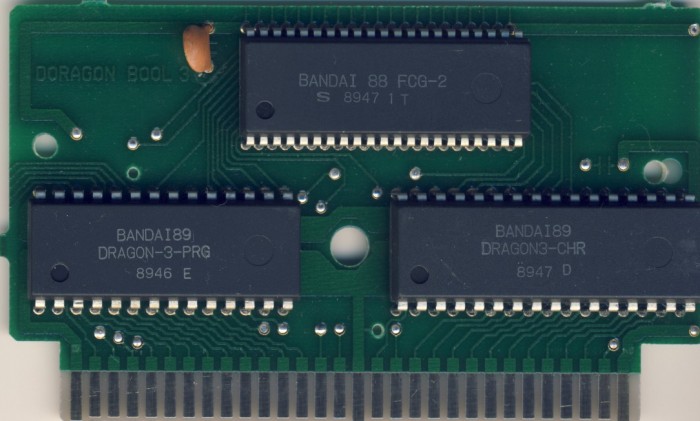

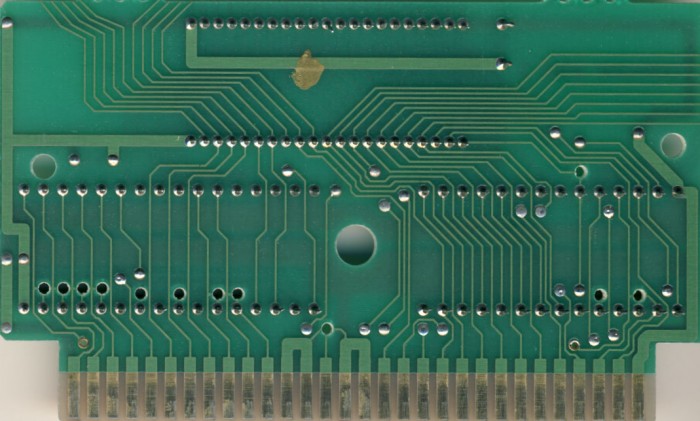

PCB Properties
| Name | DORAGON BOOL 3 |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8939 - 8949 (7) |
| Est First Run | September 1989 |
| PCB Class | BANDAI-FCG-2 |
| iNES Mapper | 16 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | FCG-2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI89 DRAGON-3-PRG | 128 KB | 8EDEB257 | 7 |
| CHR0 | BANDAI89 DRAGON3-CHR | 256 KB | C515B027 | 7 |
| N/A | ROMs Combined | 384 KB | 6E68E31A | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8946 E | 8946 | ||
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 8947 D | 8947 | ||
| Sharp | FCG-2 | Bandai FCG-2 | DIP-42 | 8947 1 T | 8947 |
