Release Info
| Catalog ID | NES-WU-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | March 14, 1991 |
| Publisher | Nintendo |
| Developer | Leland |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

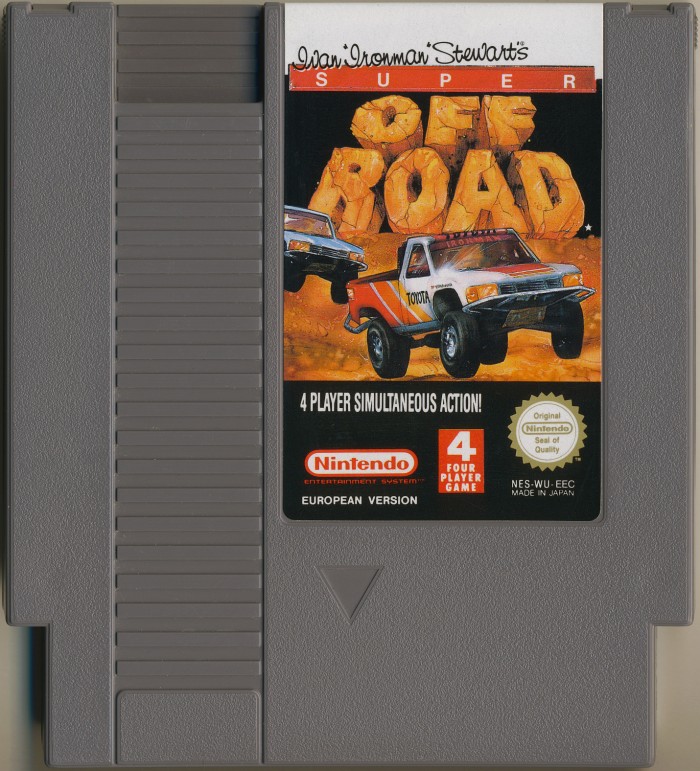

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-WU-EEC |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 07 |
PCB Properties
| Name | NES-AMROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9044 - 9046 (3) |
| Est First Run | November 1990 |
| PCB Class | NES-AMROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-WU-0 PRG | 128 KB | 05104517 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5491 | Mask ROM 128 KB | DIP-28 | 0KC 73 | 9040 | |
| U2 CHR-RAM | Phillips | FCB61C65-70P | SRAM 8 KB | DIP-28 | 9023 HSH | 9023 | K0E378NB |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9046 A | 9046 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 034 EN | 9034 |
