Release Info
| Catalog ID | TFC-TSF-5800-20 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 25, 1988 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | Famicom Controller |

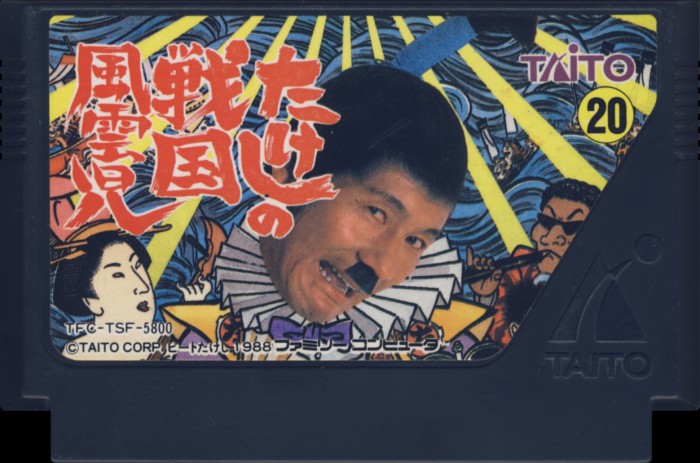

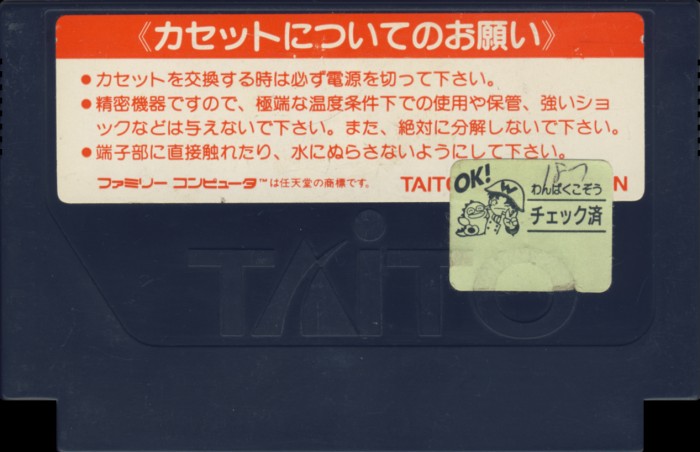

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-TSF-5800 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

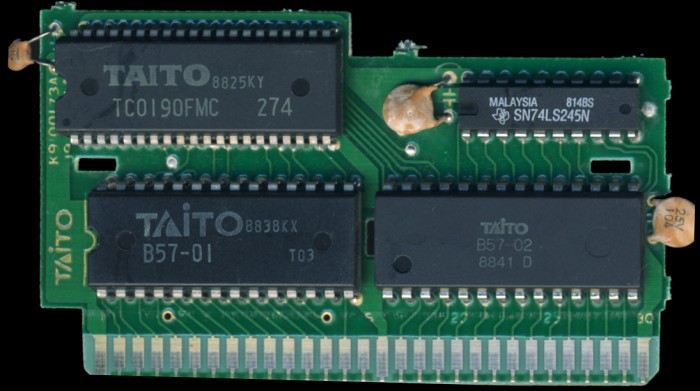

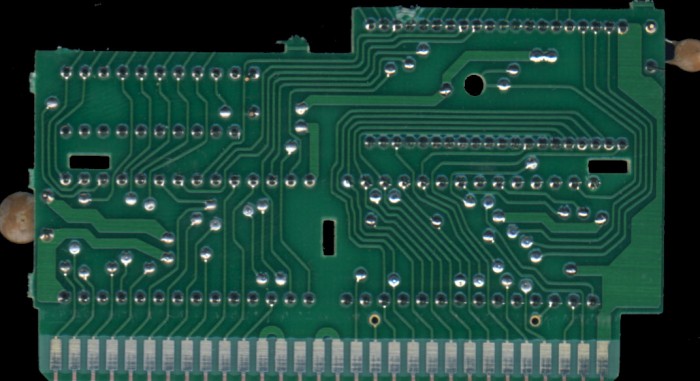

PCB Properties
| Name | J9100131A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8841 - 8843 (3) |
| Est First Run | October 1988 |
| PCB Class | TAITO-TC0190FMC |
| iNES Mapper | 33 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx245, TC0190FMC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | B57-01 | 128 KB | 5193FB54 | 3 |
| CHR0 | B57-02 | 128 KB | 99700E35 | 3 |
| N/A | ROMs Combined | 256 KB | D920F9DF | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8838 KX | 8838 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8841 D | 8841 | ||
| NEC | TC0190FMC 274 | Taito TC0190FMC | DIP-40 | 8825 KY | 8825 | ||
| Texas Instruments | SN74LS245N | 74-245 Series | DIP-20 | 814 BS | 8814 |
