Release Info
| Catalog ID | TFC-MK-4900-08 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 8, 1986 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | Famicom Controller |

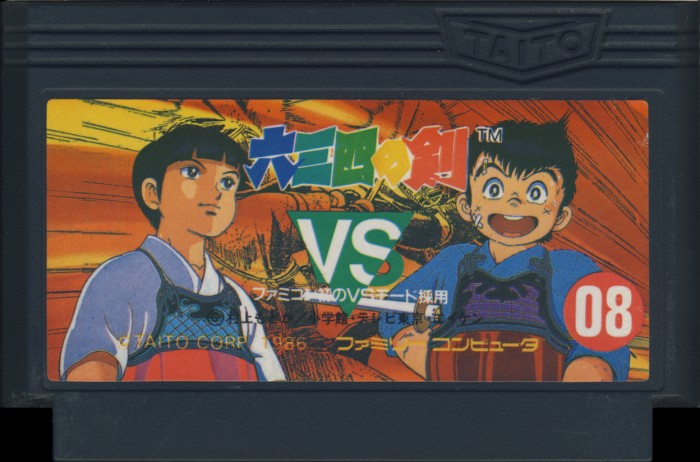

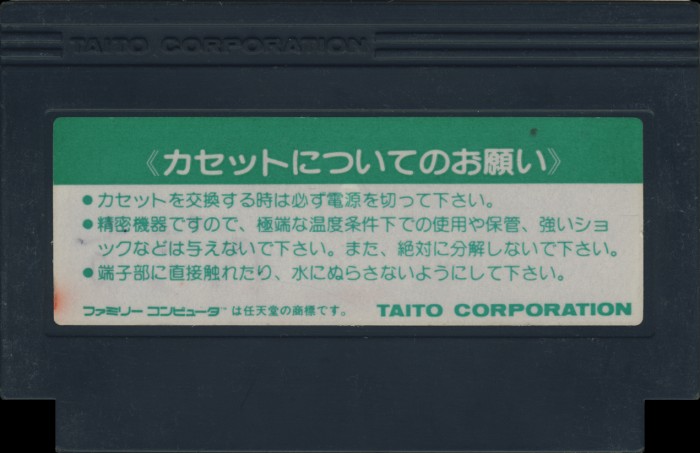

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Tall Label / Logo 1 / No Battery Door |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

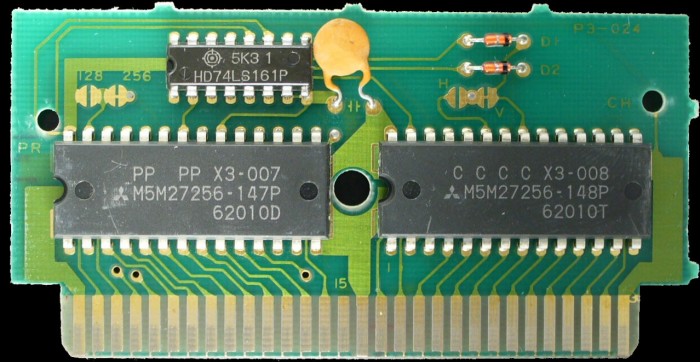

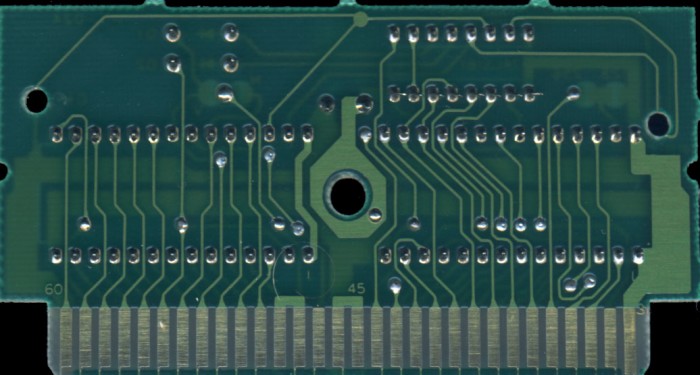

PCB Properties
| Name | P3-024 |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8620 - 8632 (5) |
| Est First Run | May 1986 |
| PCB Class | TAITO-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PP PP X3-007 | 32 KB | 9FF0F634 | 5 |
| CHR0 | C C C C X3-008 | 32 KB | 23E2279E | 5 |
| N/A | ROMs Combined | 64 KB | 9D34EDC5 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M27256 147P | PROM 32 KB | DIP-28 | 620 10D | 8620 | |
| CH | Mitsubishi | M5M27256 148P | PROM 32 KB | DIP-28 | 620 10T | 8620 | |
| Hitachi | HD74LS161P | 74-161 Series | DIP-16 | 5K3 1 | 8543 |
