Release Info
| Catalog ID | NES-C7-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1990 |
| Publisher | Milton Bradley |
| Developer | TAD |
| Players | 2 |
| Peripherals | NES Controller |

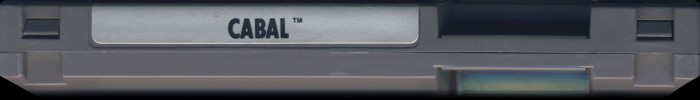

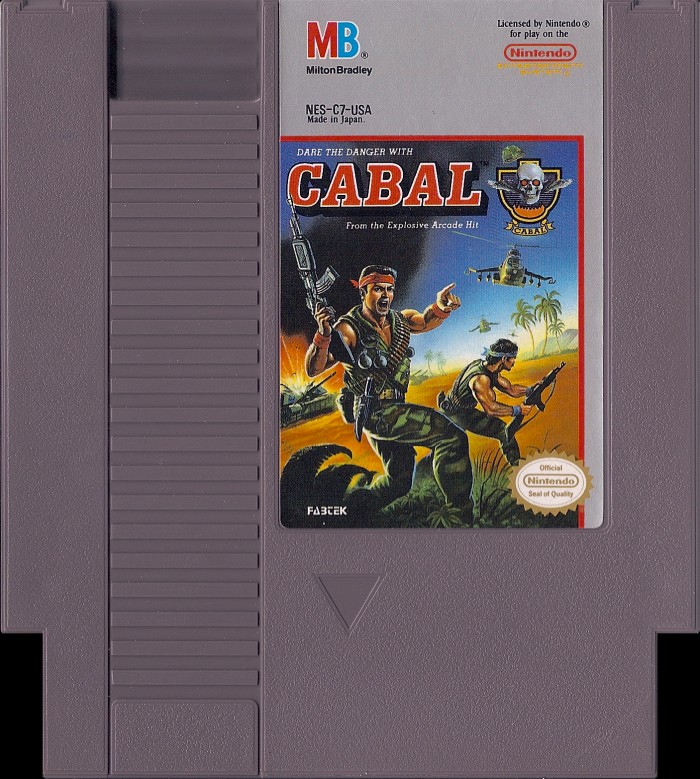

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-C7-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 05 |
PCB Properties
| Name | NES-AMROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9026 - 9027 (2) |
| Est First Run | June 1990 |
| PCB Class | NES-AMROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-C7-0 PRG | 128 KB | BDF046EF | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5469 | Mask ROM 128 KB | DIP-28 | 0FM 72 | 9024 | |
| U2 CHR-RAM | Samsung | KM6264AL-10L | SRAM 8 KB | DIP-28 | 021 N | 9021 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9024 3 CA | 9024 | |
| U4 HC161 | Toshiba | 74HC161AP | 74-161 Series | DIP-16 | 9027 H | 9027 |
