Release Info
| Catalog ID | NES-FO-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1987 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

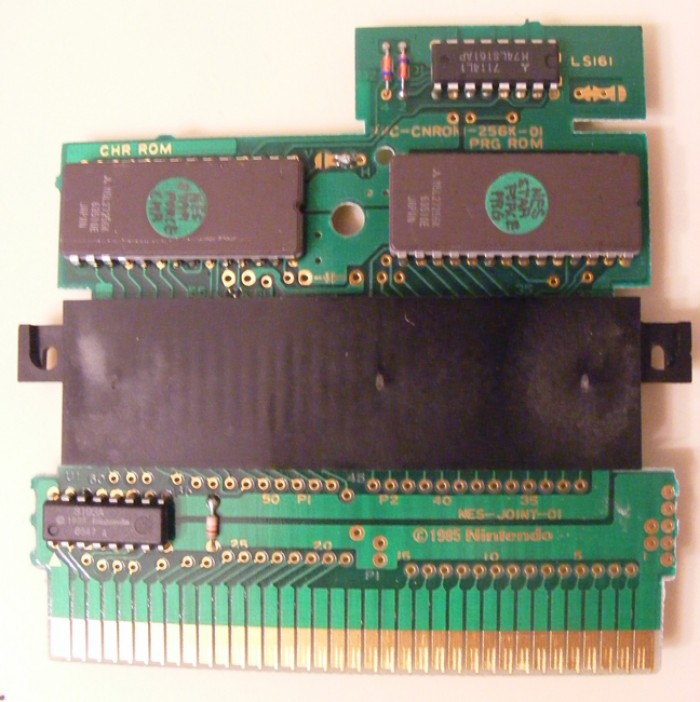

PCB Properties
| Name | HVC-CNROM-256K-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8824 |
| Est First Run | June 1988 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES STAR FORCE PRG | 32 KB | B6007625 | 1 |
| CHR0 | NES STAR FORCE CHR | 32 KB | 3765E173 | 2 |
| N/A | ROMs Combined | 64 KB | E81C71E9 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Sharp | 3193A | Nintendo CIC | DIP-16 | 8547 A | 8547 | |
| PRG ROM | Mitsubishi | M5L27256K | UV EPROM 32 KB | DIP-28 | 635 10E | 8635 | |
| CHR ROM | Mitsubishi | M5L27256K | UV EPROM 32 KB | DIP-28 | 635 10E | 8635 | |
| LS161 | Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 711 4L1 | 8711 |
