Release Info
| Catalog ID |
TGN-011-AB |
| Region |
USA (NTSC) |
| Class |
Unlicensed |
| Release Date |
1989 |
| Publisher |
Tengen |
| Developer |
Sega |
| Players |
1 |
| Peripherals |
NES Controller |

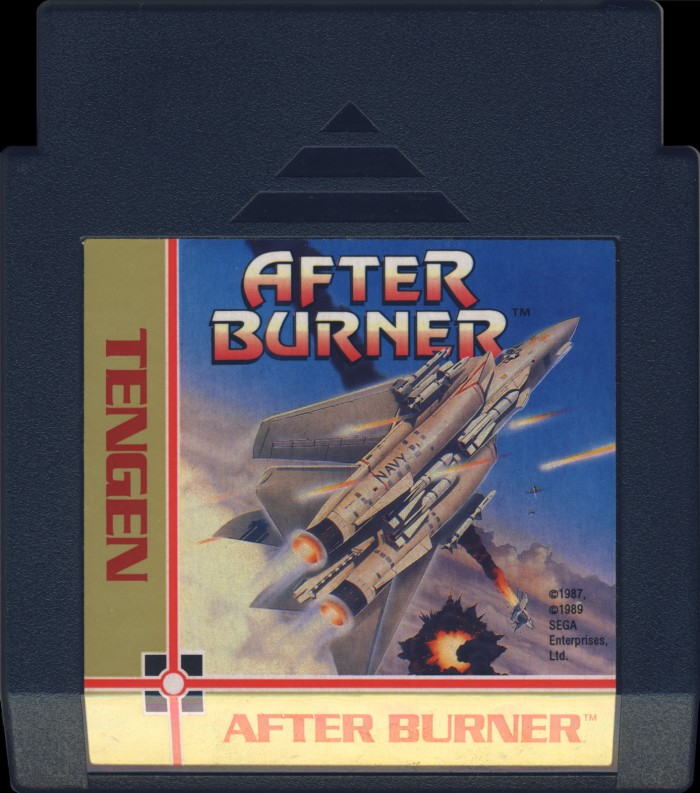

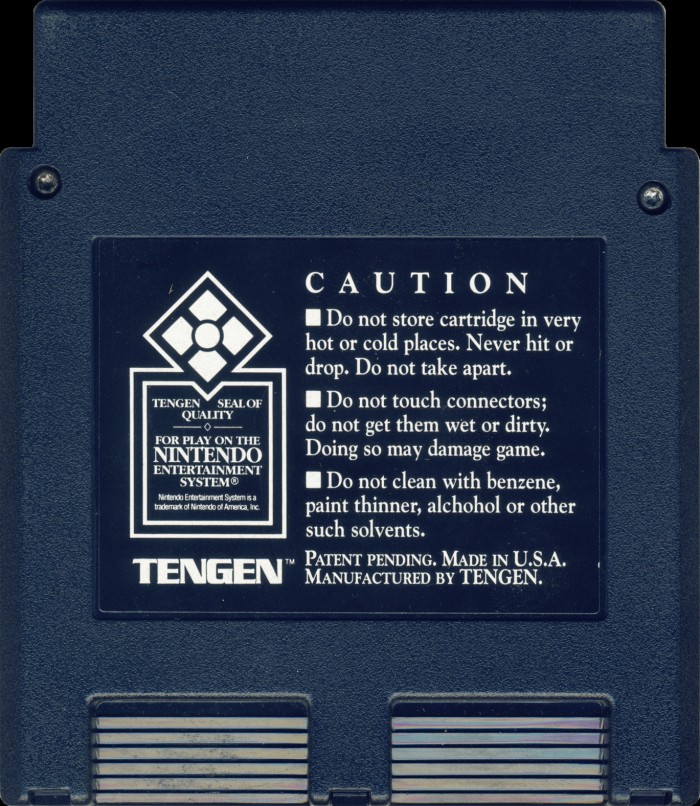

Cart Properties
| Cart Producer |
Tengen |
| Color |
Black |
| Form Factor |
Original |
| Embossed Text |
|
| Front Label ID |
|
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
800042-01 REV B |
| PCB Producer |
Tengen |
| Manufacturer |
Key Tronic |
| Mfg Range |
8943 - 8946 (2) |
| Est First Run |
October 1989 |
| PCB Class |
TENGEN-800042 |
| iNES Mapper |
68 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
0 KB |
| CIC Type |
337002 |
| Hardware |
337007, 74xx02 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
335011-1011 ABPRG |
128 KB |
B938B7E9 |
4 |
| CHR0 |
335011-1022 ABCHL |
128 KB |
1EC2140B |
4 |
| CHR1 |
335011-1032 ABCHH |
128 KB |
38F01063 |
4 |
| N/A |
ROMs Combined |
384 KB |
F699EE7E |
4 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG |
AMI |
AM231002
|
Mask ROM
128 KB
|
DIP-28 |
8943
|
8943 |
|
| CHL |
AMI |
AM231002
|
Mask ROM
128 KB
|
DIP-28 |
8943
|
8943 |
|
| CHH |
AMI |
AM231002
|
Mask ROM
128 KB
|
DIP-28 |
8946
|
8946 |
|
| 337002 |
Motorola |
337002-001
|
Tengen CIC
|
DIP-16 |
8940
ILRH
|
8940 |
|
| 337007 |
Motorola |
337007-001
|
Sunsoft-4
|
DIP-40 |
8943
ZKZKAG
|
8943 |
|
| LS02 |
Motorola |
SN74LS02N
|
74-02 Series
|
DIP-14 |
8851
FFNR
|
8851 |
|
Additional Images
PCB Images
