Release Info
| Catalog ID | NES-WG-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | February 15, 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Zapper Light Gun |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

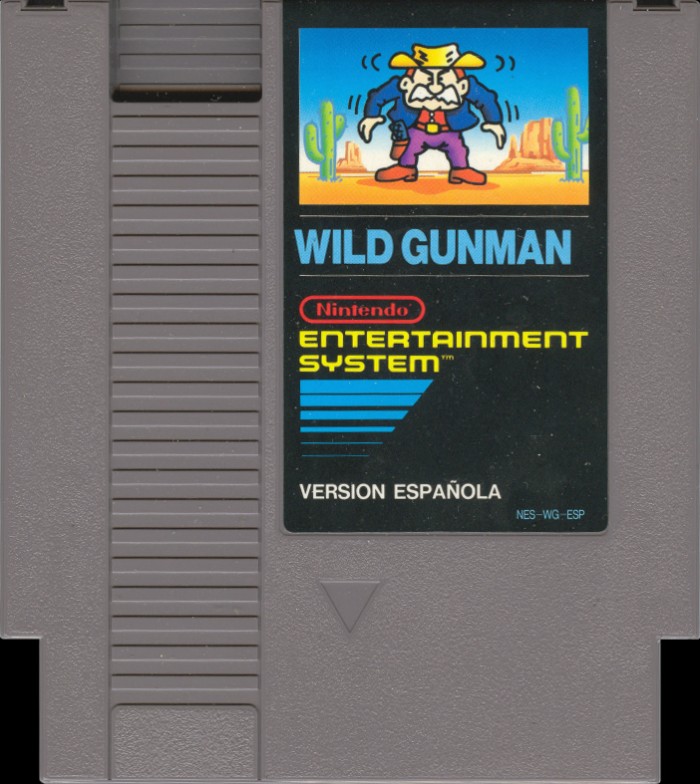

| Front Label ID | NES-WG-ESP |
| Seal of Quality | None |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-NROM-128-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-WG-1 PRG | 16 KB | 389960DB | 7 |
| CHR0 | HVC-WG-0 CHR | 8 KB | A5E04856 | 8 |
| N/A | ROMs Combined | 24 KB | 5112DC21 | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|
