| Catalog ID | NES-GS-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | June 15, 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Zapper Light Gun |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GS-EEC |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 11 |

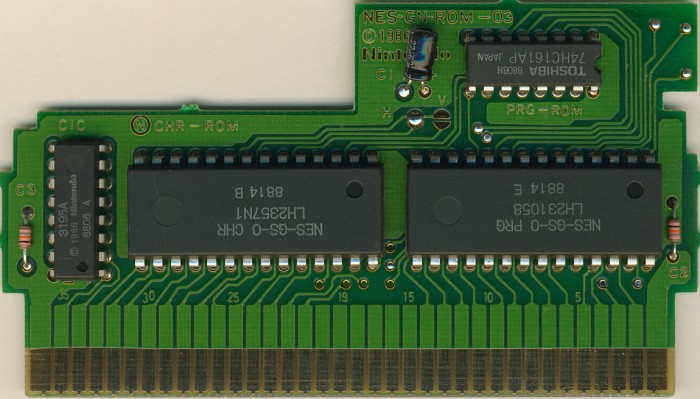

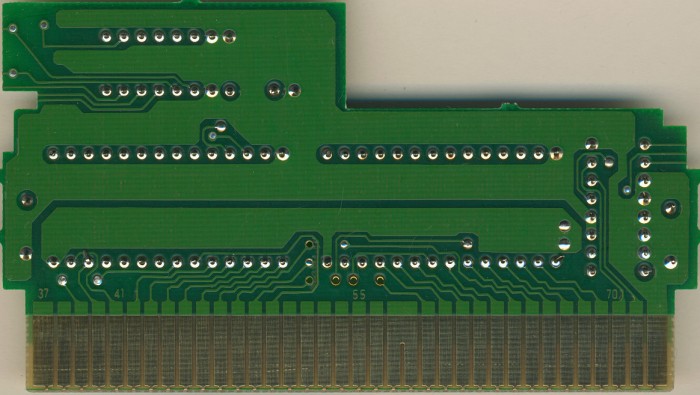

| Name | NES-GN-ROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8814 |
| Est First Run | April 1988 |
| PCB Class | NES-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-GS-0 PRG | 128 KB | 7B5BD2DE | 2 |
| CHR0 | NES-GS-0 CHR | 32 KB | DC371E9E | 2 |
| N/A | ROMs Combined | 160 KB | BEB8AB01 | 2 |
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG-ROM | Sharp | LH2310 58 | Mask ROM 128 KB | DIP-28 | 8814 E | 8814 | |
| CHR-ROM | Sharp | LH2357 N1 | Mask ROM 32 KB | DIP-28 | 8814 B | 8814 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8806 A | 8806 | |
| LS161 | Toshiba | 74HC161AP | 74-161 Series | DIP-16 | 8808 H | 8808 |
