Release Info
| Catalog ID | NES-PN-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | January 9, 1986 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

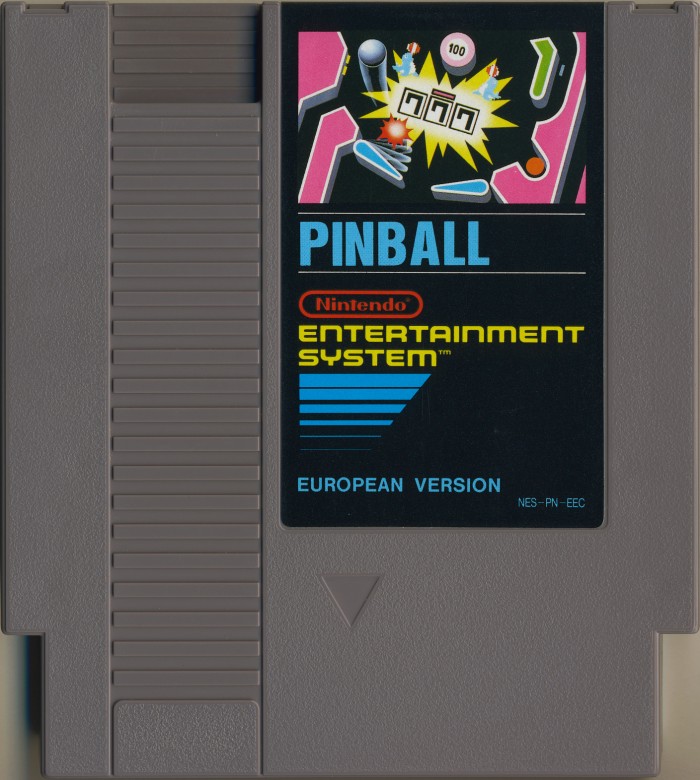

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PN-EEC |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 11 |

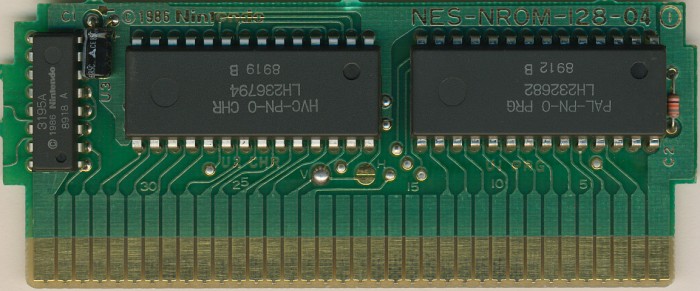

PCB Properties
| Name | NES-NROM-128-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8917 - 8919 (3) |
| Est First Run | April 1989 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-PN-0 PRG | 16 KB | B8571339 | 5 |
| CHR0 | HVC-PN-0 CHR | 8 KB | F2A53B3D | 18 |
| N/A | ROMs Combined | 24 KB | D6AD4E9D | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2326 82 | Mask ROM 16 KB | DIP-28 | 8912 B | 8912 | |
| U2 CHR | Sharp | LH2367 94 | Mask ROM 8 KB | DIP-28 | 8919 B | 8919 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8918 A | 8918 |
