Release Info
| Catalog ID | NES-IW-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | August 10, 1989 |
| Publisher | SNK |
| Developer | SNK |
| Players | 2 |
| Peripherals | NES Controller |

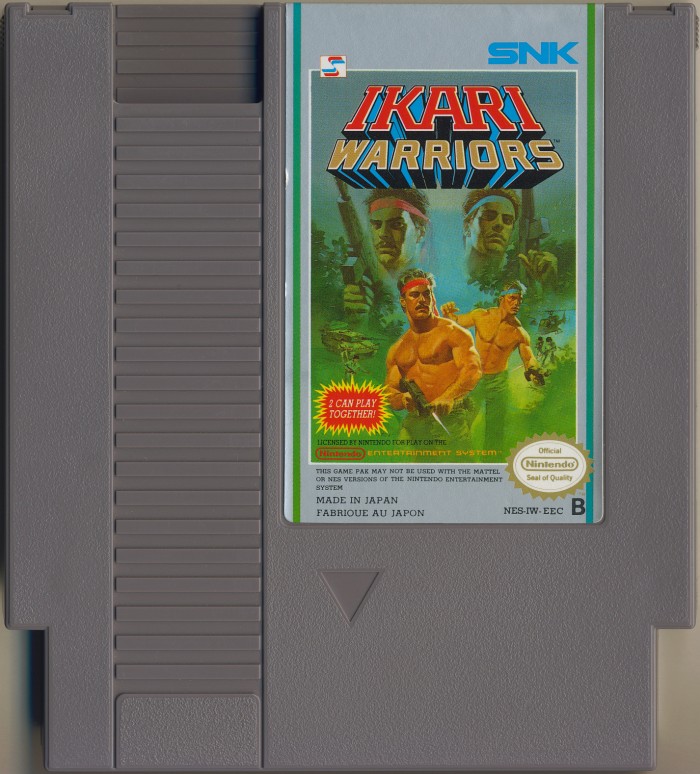

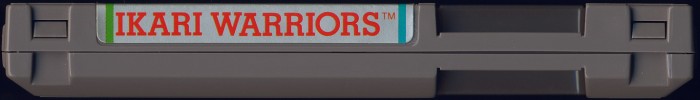

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-IW-EEC |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-UN-ROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8922 - 8923 (3) |
| Est First Run | June 1989 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-IW-0 PRG | 128 KB | 538218B2 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2307 7D | Mask ROM 128 KB | DIP-28 | 8922 D | 8922 | |
| CHR RAM | Fujitsu | MB8464A-15L-SK | SRAM 8 KB | SDIP-28 | 8915 KT12 | 8915 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8919 A | 8919 | |
| LS161N | Hitachi | HD74HC161P | 74-161 Series | DIP-16 | 9E3 T | 8920 | |
| LS32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | I11 | 8911 |
