Release Info
| Catalog ID | NES-89-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | November 14, 1991 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

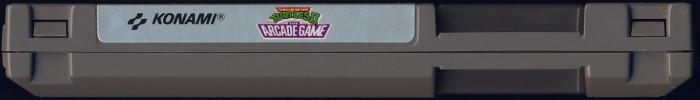

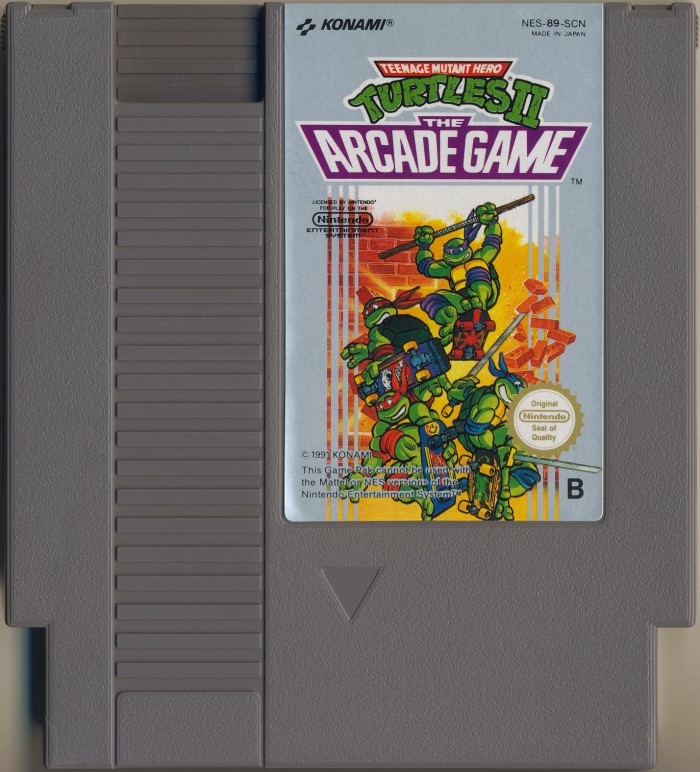

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-89-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 27 |

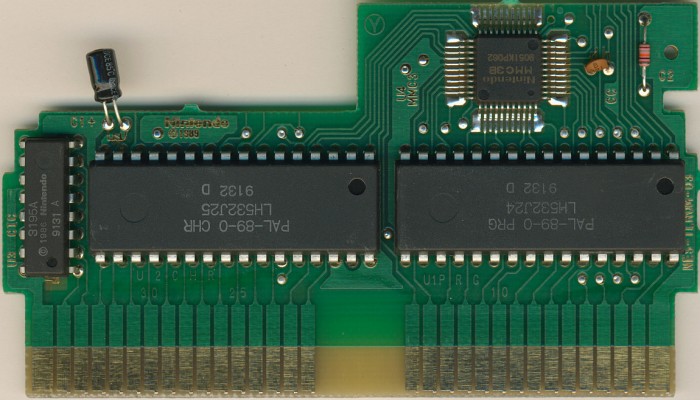

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9132 - 9132 (3) |
| Est First Run | August 1991 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-89-0 PRG | 256 KB | 355DDEE6 | 4 |
| CHR0 | PAL-89-0 CHR | 256 KB | 26747879 | 4 |
| N/A | ROMs Combined | 512 KB | C5657C12 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 24 | Mask ROM 256 KB | DIP-32 | 9132 D | 9132 | |
| U2 CHR | Sharp | LH532J 25 | Mask ROM 256 KB | DIP-32 | 9132 D | 9132 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9131 A | 9131 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9051 KP062 | 9051 |
