| Catalog ID | NES-DH-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | April 28, 1989 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Zapper Light Gun |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 11 |

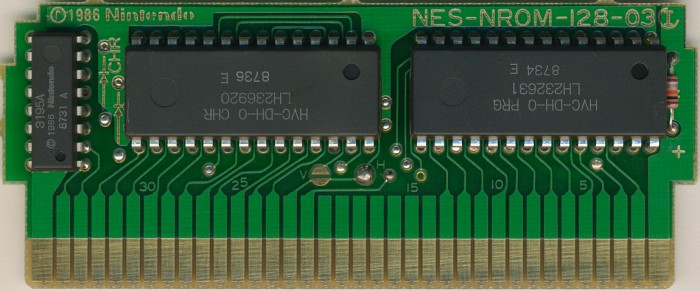

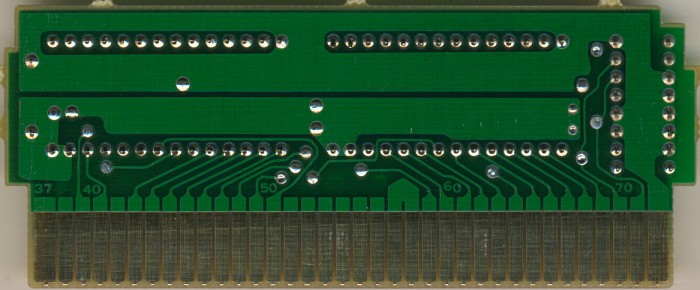

| Name | NES-NROM-128-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8736 |
| Est First Run | September 1987 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-DH-0 PRG | 16 KB | 90CA616D | 6 |
| CHR0 | HVC-DH-0 CHR | 8 KB | 4E049E03 | 6 |
| N/A | ROMs Combined | 24 KB | 24598791 | 6 |
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2326 31 | Mask ROM 16 KB | DIP-28 | 8734 E | 8734 | |
| CHR | Sharp | LH2369 20 | Mask ROM 8 KB | DIP-28 | 8736 E | 8736 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8731 A | 8731 |
