Release Info
| Catalog ID | NES-9I-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | February 20, 1992 |
| Publisher | Kemco |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

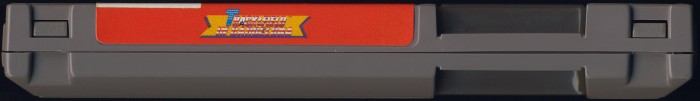

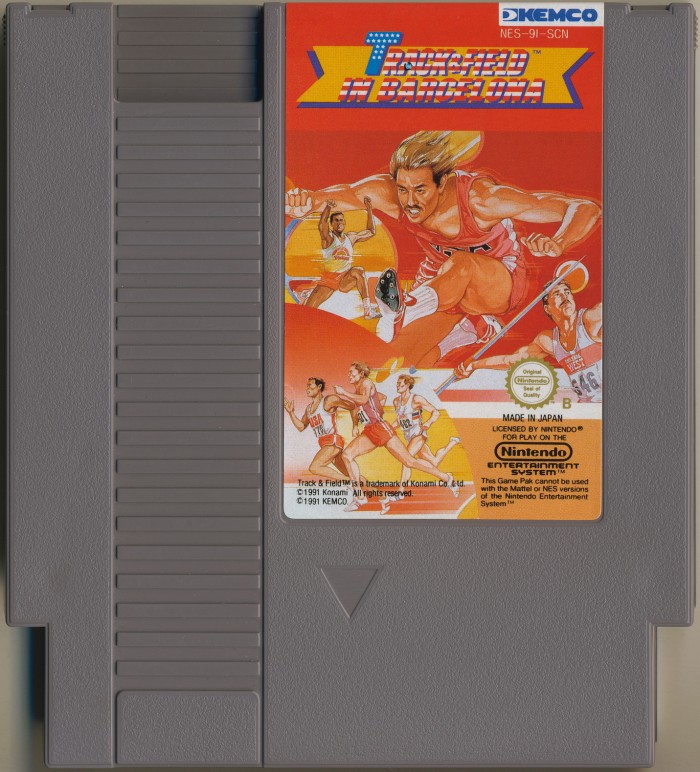

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-9I-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

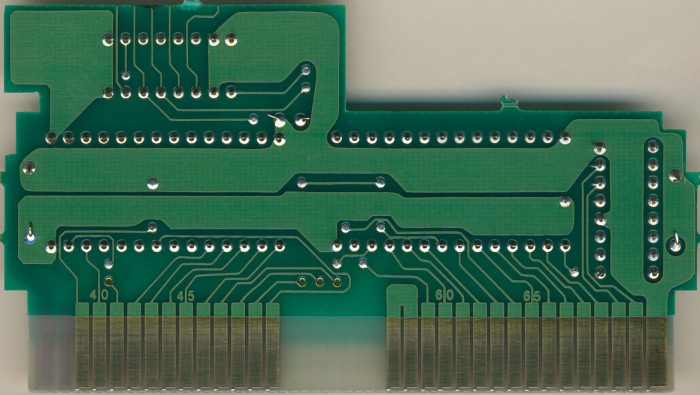

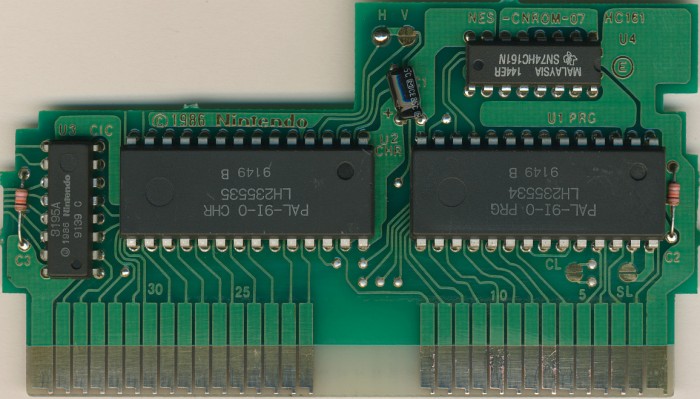

PCB Properties
| Name | NES-CNROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9149 - 9151 (2) |
| Est First Run | December 1991 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-9I-0 PRG | 32 KB | 7413E8FF | 4 |
| CHR0 | PAL-9I-0 CHR | 32 KB | F521A28F | 4 |
| N/A | ROMs Combined | 64 KB | 5D99053D | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2355 34 | Mask ROM 32 KB | DIP-28 | 9149 B | 9149 | |
| U2 CHR | Sharp | LH2355 35 | Mask ROM 32 KB | DIP-28 | 9149 B | 9149 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9139 C | 9139 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 144 ER | 9144 |
