Release Info
| Catalog ID | NES-BF-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | March 12, 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

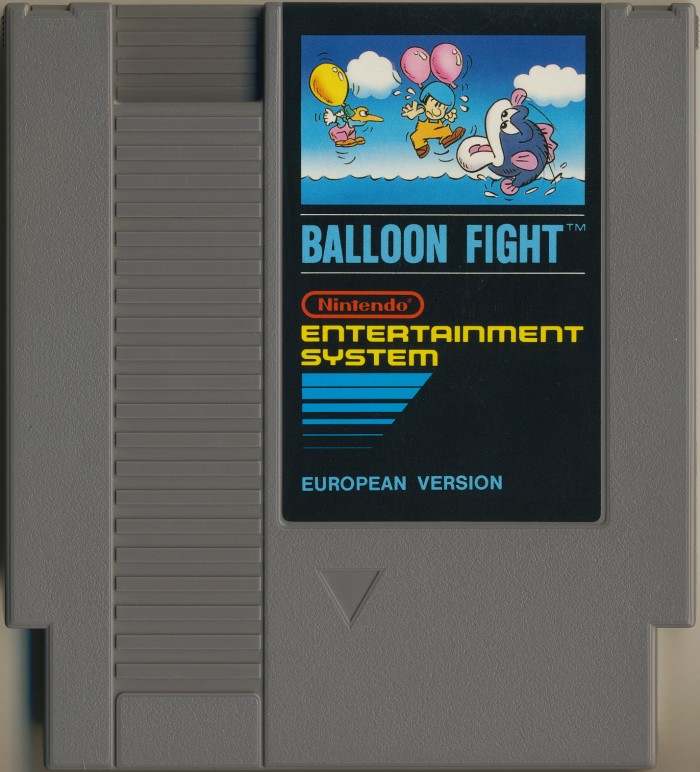

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 08 |

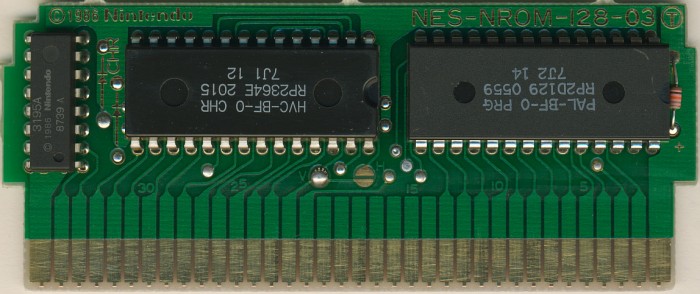

PCB Properties
| Name | NES-NROM-128-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8645 - 8739 (2) |
| Est First Run | November 1986 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-BF-0 PRG | 16 KB | 5E137C5B | 2 |
| CHR0 | HVC-BF-0 CHR | 8 KB | C642A1DF | 6 |
| N/A | ROMs Combined | 24 KB | E54138A9 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP2D129 0559 | Mask ROM 16 KB | DIP-28 | 7J2 14 | 8738 | |
| CHR | Ricoh | RP2364E 2015 | Mask ROM 8 KB | DIP-28 | 7J1 12 | 8737 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8739 A | 8739 |
