| Catalog ID | NES-SX-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | April 15, 1987 |
| Publisher | Nintendo |
| Developer | Irem |
| Players | 2 |
| Peripherals | NES Controller |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-SX-EEC |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 11 |

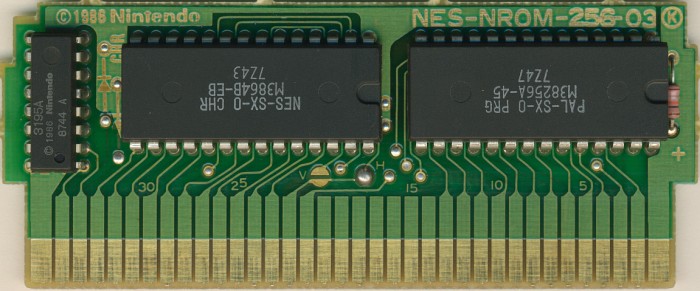

| Name | NES-NROM-256-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8709 - 8749 (2) |
| Est First Run | March 1987 |
| PCB Class | NES-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-SX-0 PRG | 32 KB | 9C715918 | 5 |
| CHR0 | NES-SX-0 CHR | 8 KB | 430B49A4 | 10 |
| N/A | ROMs Combined | 40 KB | 464A67AB | 5 |
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | OKI | M38256A 45 | Mask ROM 32 KB | DIP-28 | 7Z 47 | 8749 | |
| CHR | OKI | M3864B EB | Mask ROM 8 KB | DIP-28 | 7Z 43 | 8749 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8744 A | 8744 |
