| Catalog ID | NES-CL-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | September 22, 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 07 |

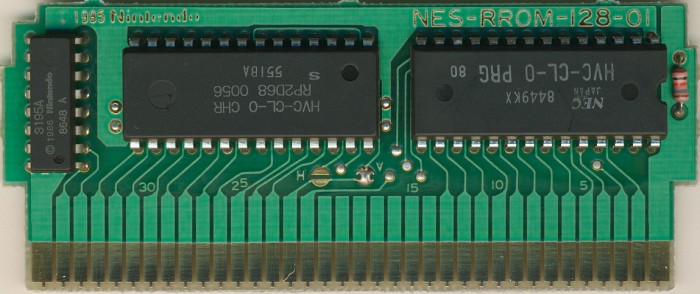

| Name | NES-RROM-128-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8648 - 8839 (2) |
| Est First Run | December 1986 |
| PCB Class | NES-RROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-CL-0 PRG | 16 KB | 23A60A62 | 7 |
| CHR0 | HVC-CL-0 CHR | 8 KB | A63B8B98 | 7 |
| N/A | ROMs Combined | 24 KB | 48F68D40 | 7 |
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C128 | Mask ROM 16 KB | DIP-28 | 8449 KX | 8449 | ||
| Sharp | RP2D68 0056 | Mask ROM 8 KB | DIP-28 | 51B 5 | 8503 | ||
| Sharp | 3195A | Nintendo CIC | DIP-16 | 8648 A | 8648 |
