Release Info
| Catalog ID | NES-WH-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Multi-cart |
| Release Date | December 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller,Zapper Light Gun,Power Pad |

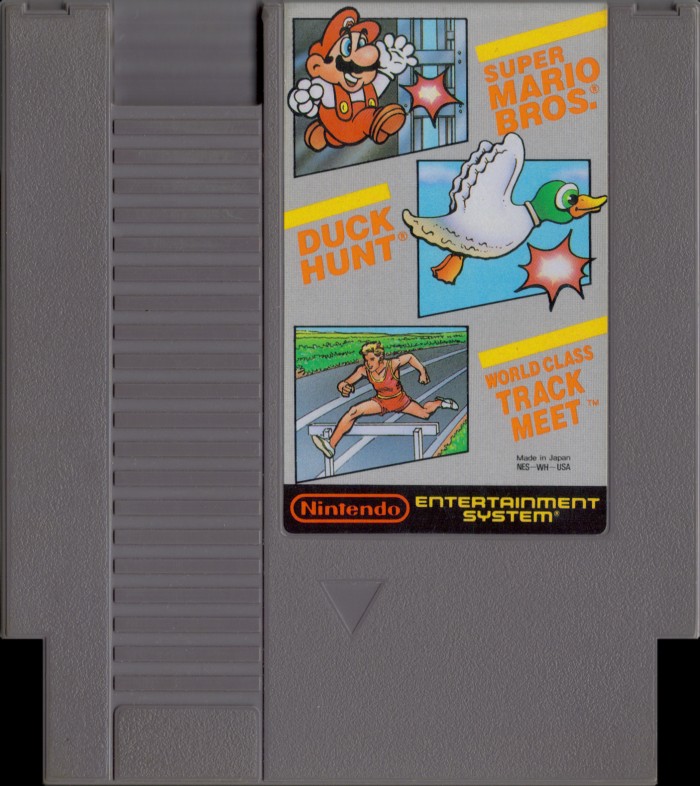

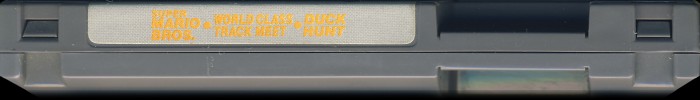

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-WH-USA |
| Seal of Quality | None |
| MfgString Present | Yes |
| 2-digit Code | 11 |

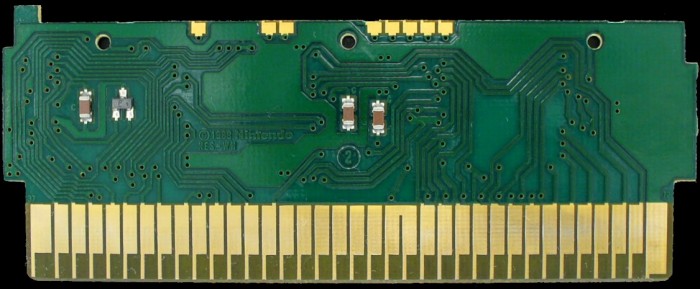

PCB Properties
| Name | NES-WH |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Sharp |
| Mfg Range | 8834 - 8931 (5) |
| Est First Run | August 1988 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 6BEB5C84 | 4 |
| CHR0 | Not Present | 64 KB | 3FA21A12 | 6 |
| N/A | ROMs Combined | 192 KB | 529B621F | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

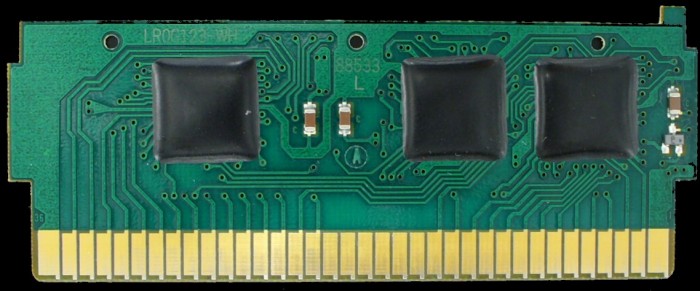

| PCB | Sharp | LROG123 WH | Chip-on-Board PCB | PCB | 8853 3 | 8853 | |
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP512 | Bonded ROM 64 KB | EPOXY | ||||
| __Unknown | EP3193A | Nintendo CIC | EPOXY | ||||
| __Unknown | EPMMC1 | Nintendo MMC1 | EPOXY |
