Release Info
| Catalog ID | NES-MW-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | April 28, 1989 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

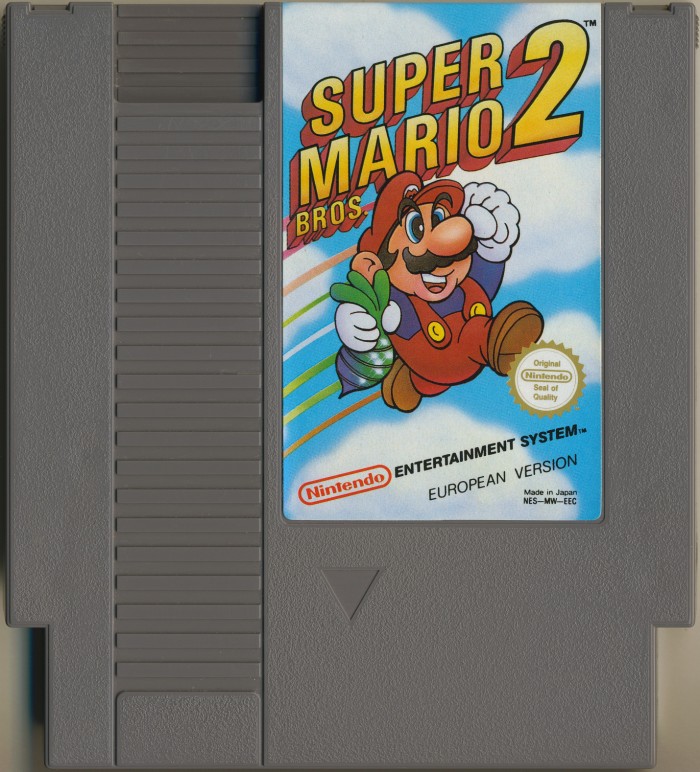

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MW-EEC |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

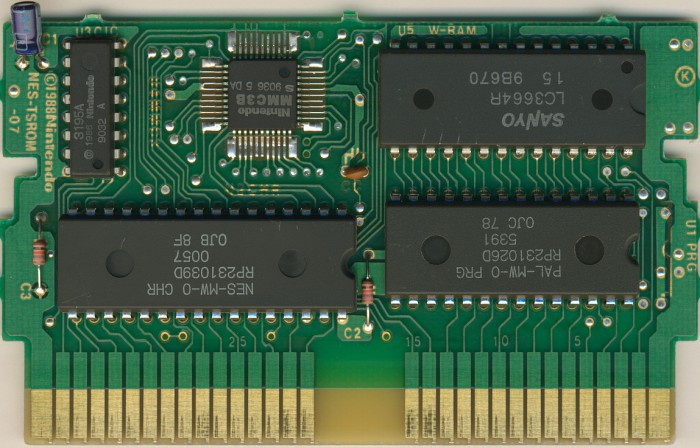

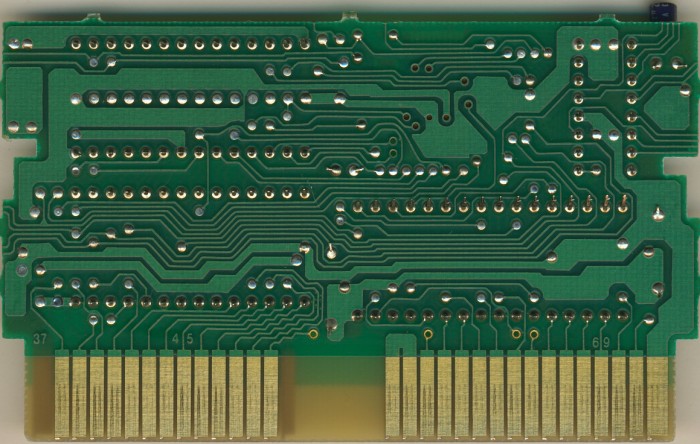

PCB Properties
| Name | NES-TSROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8902 - 9036 (6) |
| Est First Run | January 1989 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-MW-0 PRG | 128 KB | 08AF16A0 | 9 |
| CHR0 | NES-MW-0 CHR | 128 KB | F2BA1170 | 20 |
| N/A | ROMs Combined | 256 KB | E94E883D | 9 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5391 | Mask ROM 128 KB | DIP-28 | 0JC 78 | 9036 | |
| U2 CHR | Ricoh | RP231039D 0057 | Mask ROM 128 KB | DIP-32 | 0JB 8F | 9036 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9032 A | 9032 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9036 5 DA | 9036 | |
| U5 W-RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 9B 670 | 8944 |
