Release Info
| Catalog ID | NES-F2-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1989 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

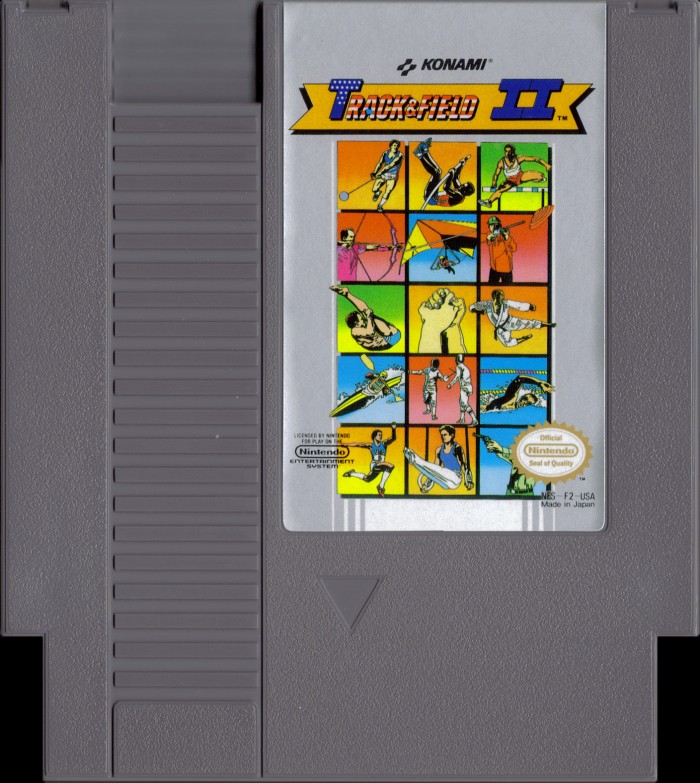

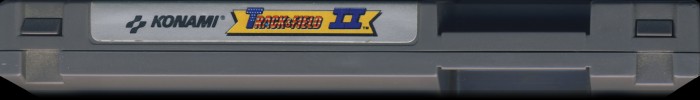

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-F2-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 24 |

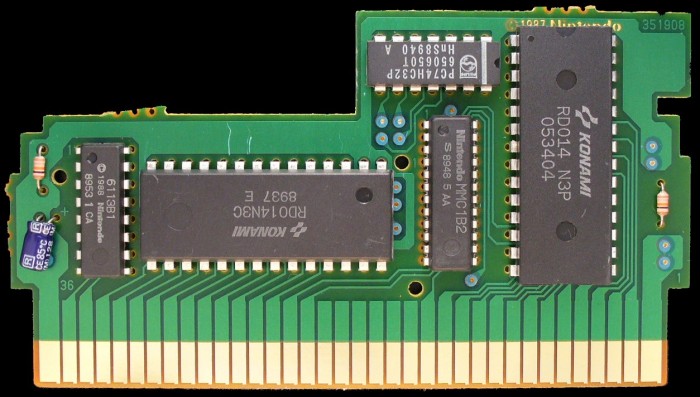

PCB Properties
| Name | 351908 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8909 - 8953 (3) |
| Est First Run | March 1989 |
| PCB Class | KONAMI-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RD014N3P | 128 KB | 22EE7772 | 1 |
| CHR0 | RD014N3C | 128 KB | B65E6472 | 6 |
| N/A | ROMs Combined | 256 KB | 7FA191E7 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Konami | KD231002 | Mask ROM 128 KB | DIP-28 | 8S1B1 | |||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8937 E | 8937 | ||
| Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8953 1 CA | 8953 | ||
| Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8948 5 AA | 8948 | ||
| Phillips | PC74HC32P | 74-32 Series | DIP-14 | 8940 HnS | 8940 | 650650T |
