Release Info
| Catalog ID | NES-DD-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | July 15, 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

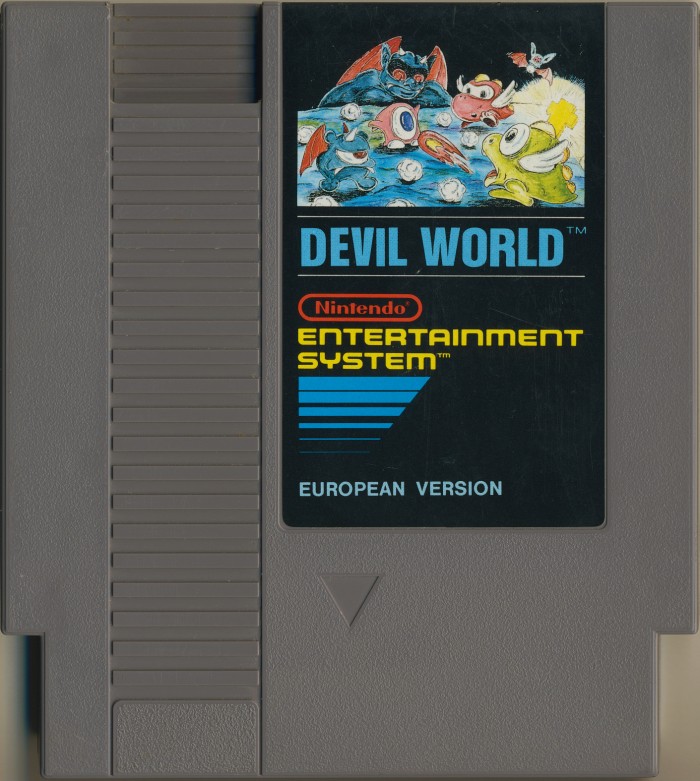

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 11 |

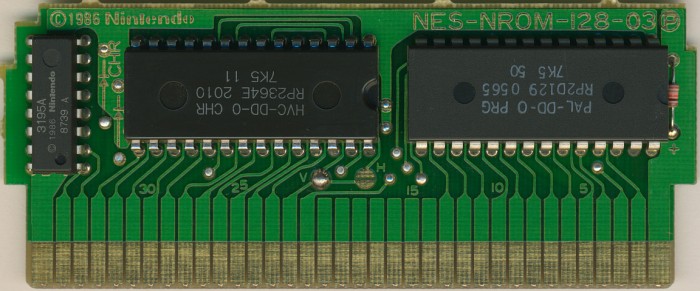

PCB Properties
| Name | NES-NROM-128-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8745 |
| Est First Run | November 1987 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-DD-0 PRG | 16 KB | 60CB6FF6 | 1 |
| CHR0 | HVC-DD-0 CHR | 8 KB | 3A9AA7A1 | 4 |
| N/A | ROMs Combined | 24 KB | 0C783F0C | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP2D129 0565 | Mask ROM 16 KB | DIP-28 | 7K5 50 | 8745 | |
| CHR | Ricoh | RP2364E 2010 | Mask ROM 8 KB | DIP-28 | 7K5 11 | 8745 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8739 A | 8739 |
